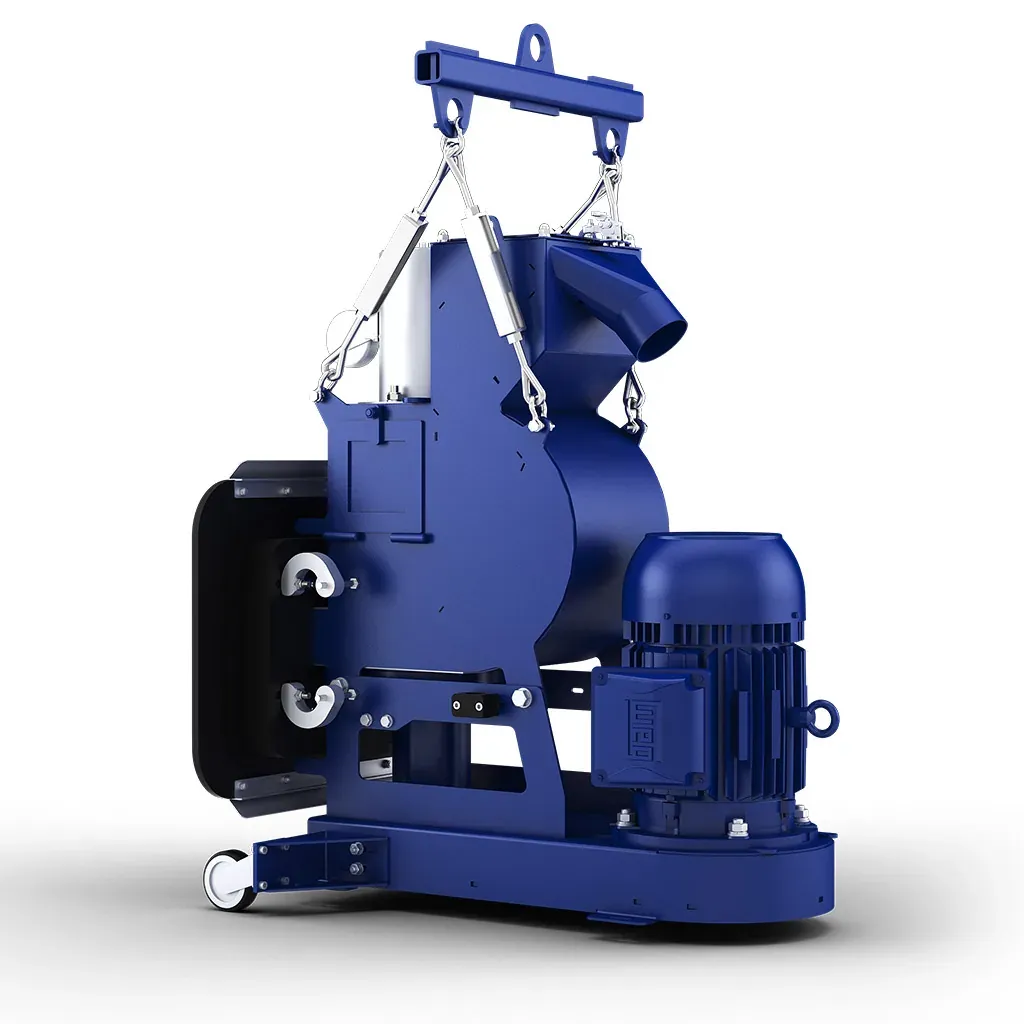

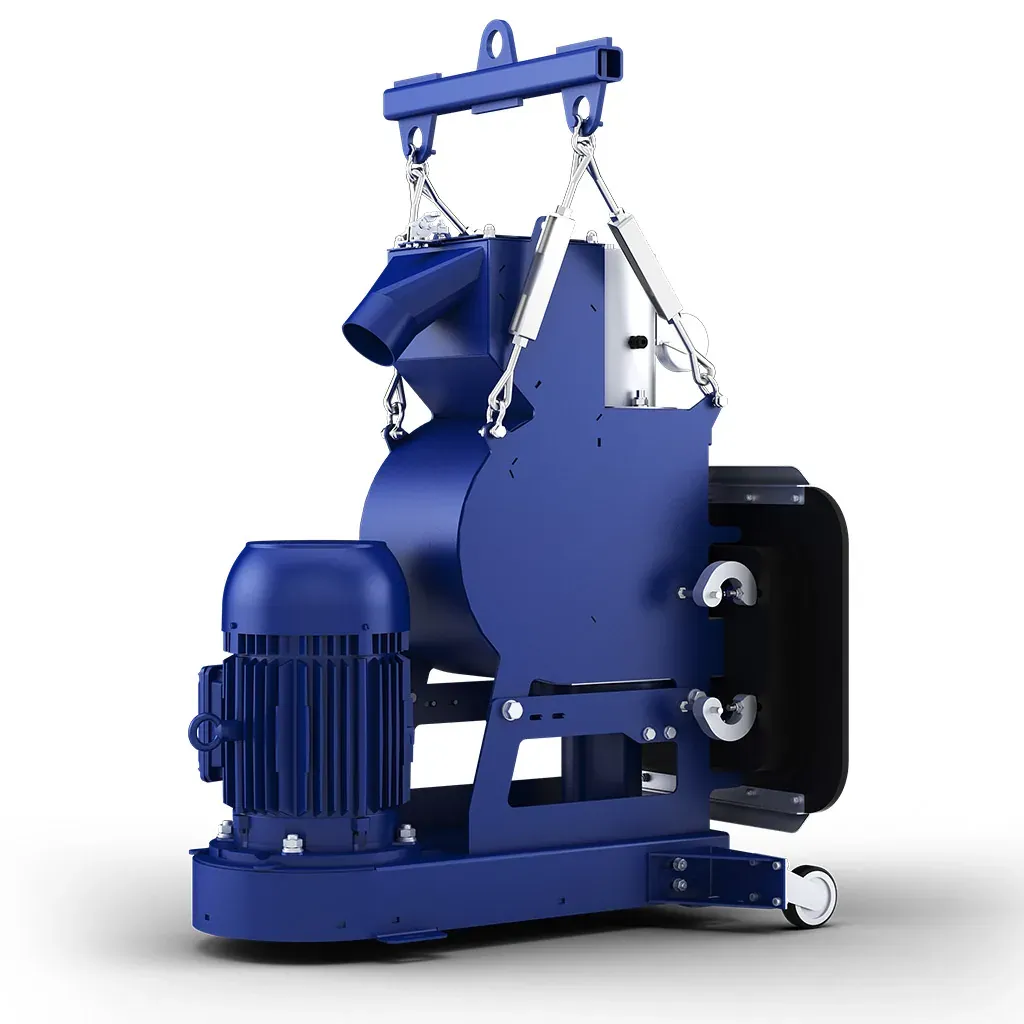

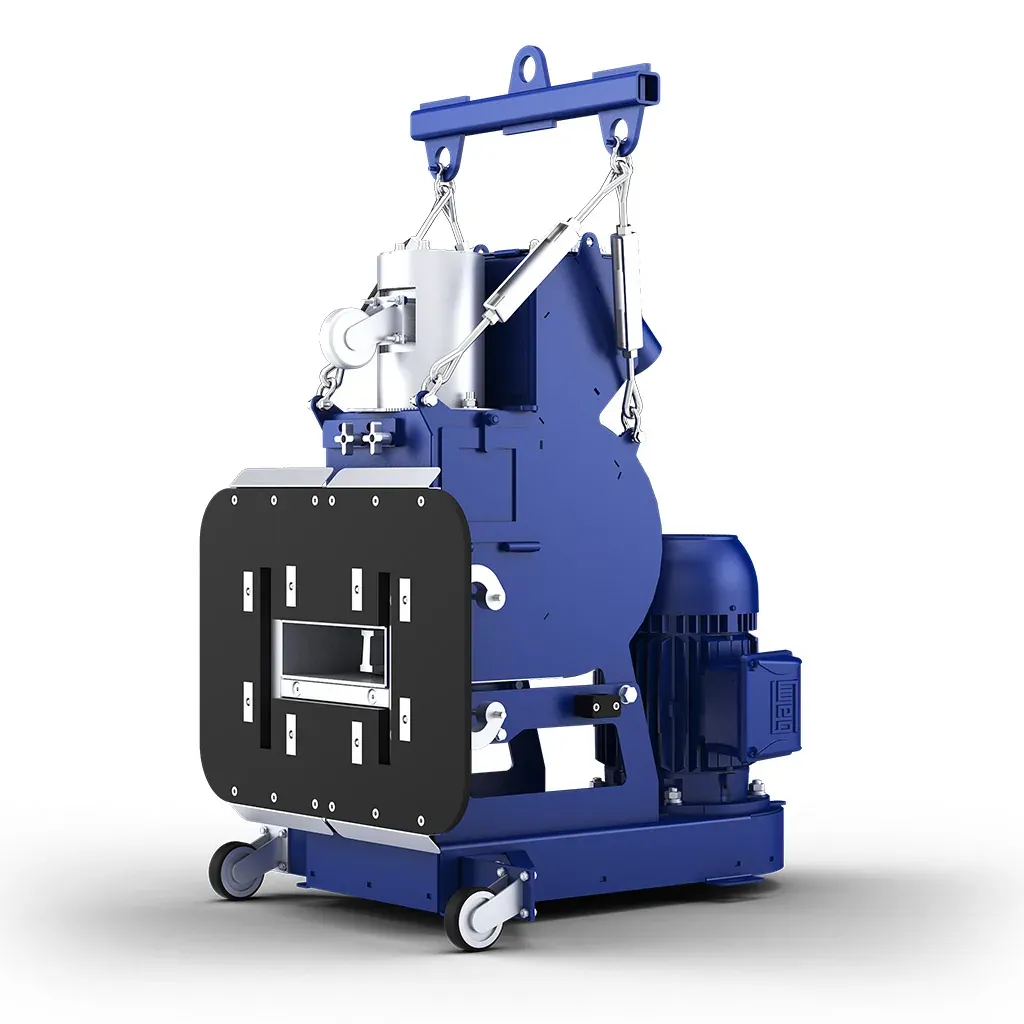

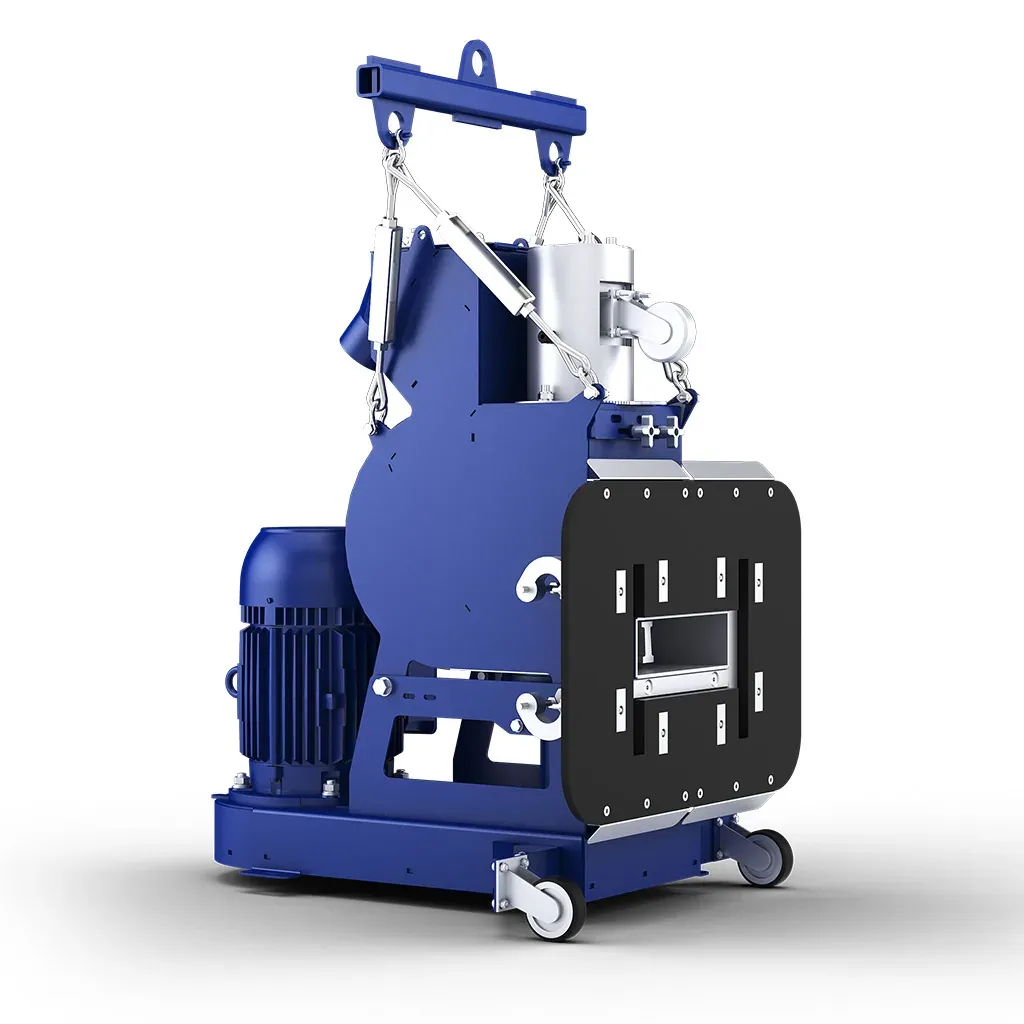

BLASTRAC 200VMB STEEL BLASTER

200VMB STEEL BLASTER

Blasting Width: 217 mm
Weight: 177 kg
Dimensions LxWxH: 726 x 635 x 839 mm
Rated Power Input: 7.4 kW
Voltage: 400 V
Frequency: 50 Hz
Rated Current: 32 A
Pin: 3 ph
Dust Hose Connection Ø: 100 mm
Noise Level: 90 dB(A)
Blasting Capacity: Up to 10 m²/h on steel (SA 2.5), Up to 40 m²/h on concrete
Abrasive Consumption: 0.2 – 0.5 kg/m²
Drive System: Electric 0.2 – 20 m/min
Surface: Steel & Concrete
Wired Control Station

Description

200VMB STEEL BLASTER

A VERTICAL STEEL BLASTER, WORKING WIDTH 200 MM

Fast, effective, and with a working width of 200mm, the Blastrac 200VMB is perfect for all vertical steel & concrete blast cleaning machines, designed to clean vertical surfaces, such as oil/storage/water tank shells, ship hulls, and many more. It is remote controlled for operator safety, comfort, and productivity. The Blastrac 200VMB is able to blast both moving up and down.



ADVANTAGES OF THE 200VMB STEEL BLASTER:

  • Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.
  • Increased productivity, reduced maintenance costs.
  • Fast and efficient removal of coatings, paint, rust, and mill scale on steel and concrete surfaces.
  • Ergonomic design and user-friendly remote control panel.
  • Perfect for small-size vertical surfaces on concrete & steel.
  • A compact machine that can access narrow spaces (blasting width of 20cm).
  • Low operating costs because of the abrasive recycling.
  • Remotely controlled from a mobile workstation in order to protect the health of the operators.
