TRAMEX KIT – Flooring Inspection Master Kit (FMK 5.1)

TRAMEX FLOORING INSPECTION KIT

A complete kit for moisture testing of concrete and wood flooring to ASTM and other international standards. Featuring the Tramex CMEX II digital concrete moisture meter for testing per ASTM F2659 and 3 best in class reusable Hygro-i2 ® relative humidity probes for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170 (or Hood Method with optional Hood) for relative humidity readings in concrete slabs. An infrared surface thermometer is included for testing surface temperatures and can be used in conjunction with the Hygro-i2 ® probe to monitor dew point conditions. A heavy-duty hammer pin-probe allows the user to measure the moisture content in wood. Calibration check salts are included in the Flooring Inspection Kit, which comes in a protective heavy-duty carrying case with die-cut foam lining.

Features

  • Instant concrete moisture content test from 0 – 6.9% with CMEX II to ASTM F2659.
  • Fastest, most reliable, Hygro-i2 ® RH probe for testing to ASTM F2170.
  • Perform multiple tests simultaneously.
  • Re-usable Hygro-i2 ® Relative Humidity probes prove to be the lowest cost per ASTM F2170.
  • Test ambient site conditions of Temperature, RH, Dew Point & Mixing Ratio.
  • Backlit display for ease of reading in low level lighting.

Description

SPECIFICATIONS

  • Size: 16.9″ x 13.6″ x 5.1″ (430mm x 345mm x 130mm)
  • Weight: 8.8lbs (4kg) Power:
  • 3 x 9 volt PP3 Batteries (included)

Measuring range – CMEX II:

  • Depth of penetration in concrete: (NDT*) approx. ¾” (20 mm)
  • Moisture content for Concrete: (NDT*) 0 to 6.9%
  • Comparative for Gypsum floor screed: (NDT*) 0 to 10
  • Reference scale: (NDT*) 0 to 100
  • Moisture Content in wood using Pin Probe: 7 to 40%
  • Relative Humidity (with Hygro-i2 ® probe): 0 to 99%
  • Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C / 77°F
  • *NDT – Non-destructive Test

Measuring range – MRH III:

  • Depth of penetration: (NDT*) up to 1¼” (30mm) (in wood, drywall)
  • Wood Non-invasive Mode 5 to 55% (at SG of 0.3)
  • Wood Invasive Mode using Pin Probe: 7 to 40%
  • Reference scale for building materials: 0 to 100
  • Relative Humidity (with Hygro-i2 ® probe): 0 to 99%
  • Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C / 77°F

Kit specifications:

  • Size: 16.9″ x 13.6″ x 5.1″ (430mm x 345mm x 130mm)
  • Weight: 8.8lbs (4kg)
  • Power: 3 x 9 volt PP3
  • Batteries (included)

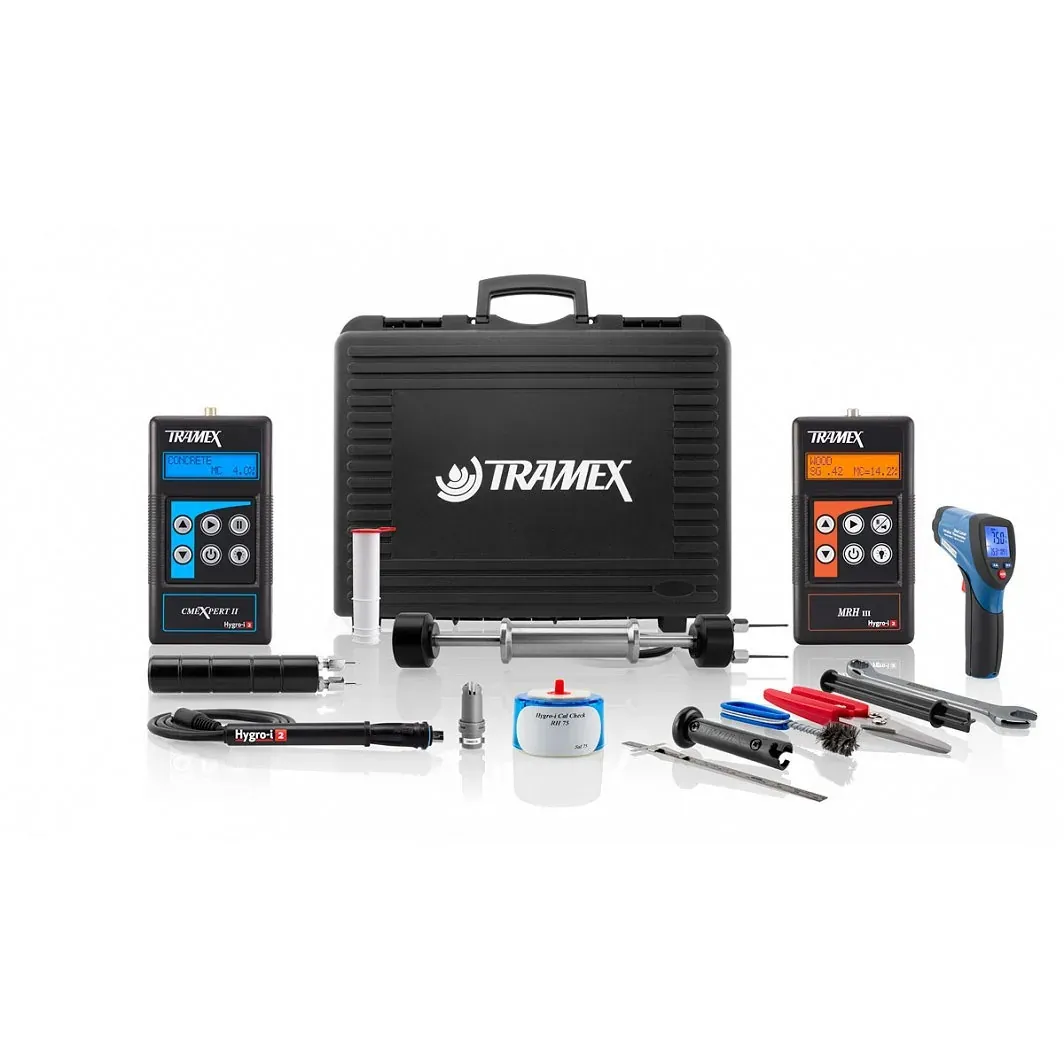

Kit Contents

1. CMEX II – concrete meter.

2. MRH III – moisture and humidity moisture meter.

3. 3 x Hygro-i2 ® Relative Humidity probes.

4. 25 x Hole Liners.

5. Heavy-duty pin-type wood probe.

6. Heavy-duty hammer pin-type wood probe.

7. 3 x SAL75 (Calibration Check Salts).

8. Infrared thermometer.
