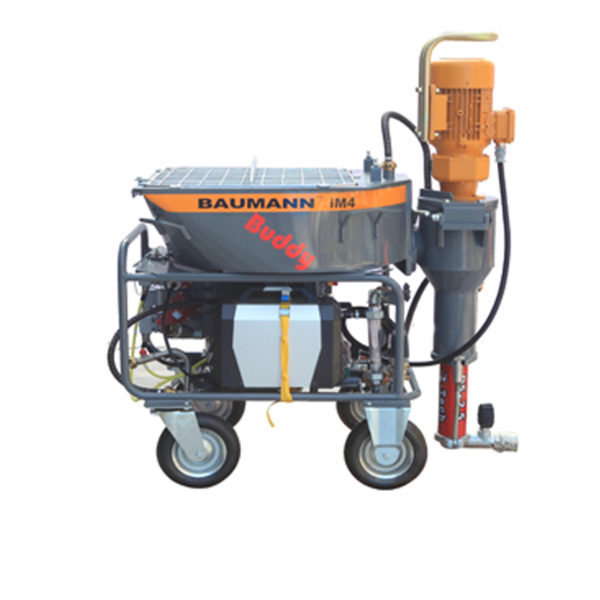

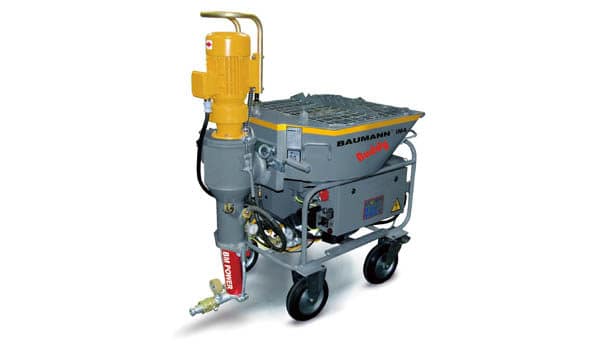

BAUMANN Machine – Mixer Pump iM4 Buddy

iM4 Buddy is suitable for all pumpable ready-mixed dry mortars, whether from a bag or from a silo, for example, interior-use plaster (gypsum/gypsum lime plaster), external render (lime/ lime cement and insulating plaster), self levelling floor screed, cementitious adhesive and reinforcement mortar.

Description

For all your construction projects, it’s good to have a “Buddy” by your side. iM4 Buddy is suitable for all pumpable ready-mixed dry mortars, whether from a bag or from a silo, for example, interior-use plaster (gypsum/gypsum lime plaster), external render (lime/ lime cement and insulating plaster), self levelling floor screed, cementitious adhesive and reinforcement mortar. Different pump parts and versions vary your mixing and pumping output of approximately 5-80l/min.

Technical Data iM4 Buddy
Pump type D5-2,5 B Power
Delivery rate* 25 l/min
Delivery pressure 40 bar
Delivery distance** up to 40 m horizontally,15 m high
Air compressor 0.55 kW/ 200 l/min
Drive pump 400V / 50 Hz / 5.5 kW at 392 rpm
Drive hopper 1.1 kW
Tank capacity 115 L
Water pump 0.78 kW at 3.4m3/h
Weight 240 kg
L×W×H 1,324×728×1,443 mm
Filling height 984 mm
Maximum grain size 4mm
Discharge connection M 35
Part No. B992 530 001

* The delivery rate depends on the rotor/stator and pump speed. Depending on the speed, the delivery rate may be higher or lower.

**The data is based on experience and is dependent on the materials used.
