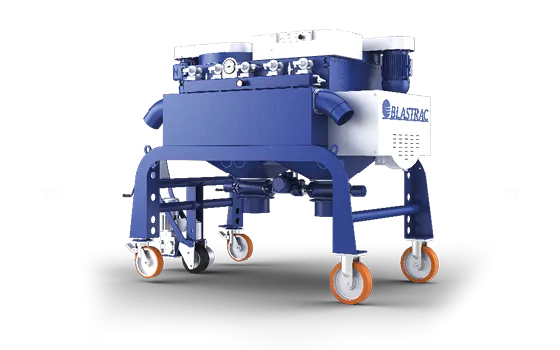

BLASTRAC 2-48DC DUST COLLECTOR

2-48DC DUST COLLECTOR

Airflow: 2 x 2200 m³/h
Vacuum: 66 hPa
Motor: 2 Powerful Motors
Weight: 1107 kg
Dimension LxWxH: 2293 x 1410 x 1956 mm
Filter: 20 High-Quality Cartridge Filters, Automatic Pulse Cleaning System
Rated Power Input: 18 kW
Voltage: 400 V
Frequency: 50 Hz
Rated Current: 32 A
Pin: 3 ph
Dust Hose Inlet: 2 x Ø 150 mm,
Dustbin: 385 Litres
Noise Level: 83 dB(A)

Description

2-48DC DUST COLLECTOR

ESPECIALLY DESIGNED TO CONNECT WITH THE 2-48DS

The Blastrac 2-48DC is specially designed to connect with the 2-48DS shot blaster and to be used on concrete and asphalt surfaces. The 2-48DC is equipped with one easy and quick-to-replace big bag system. Due to the limited height and drive system, this dust collector is very manoeuvrable for its size.
