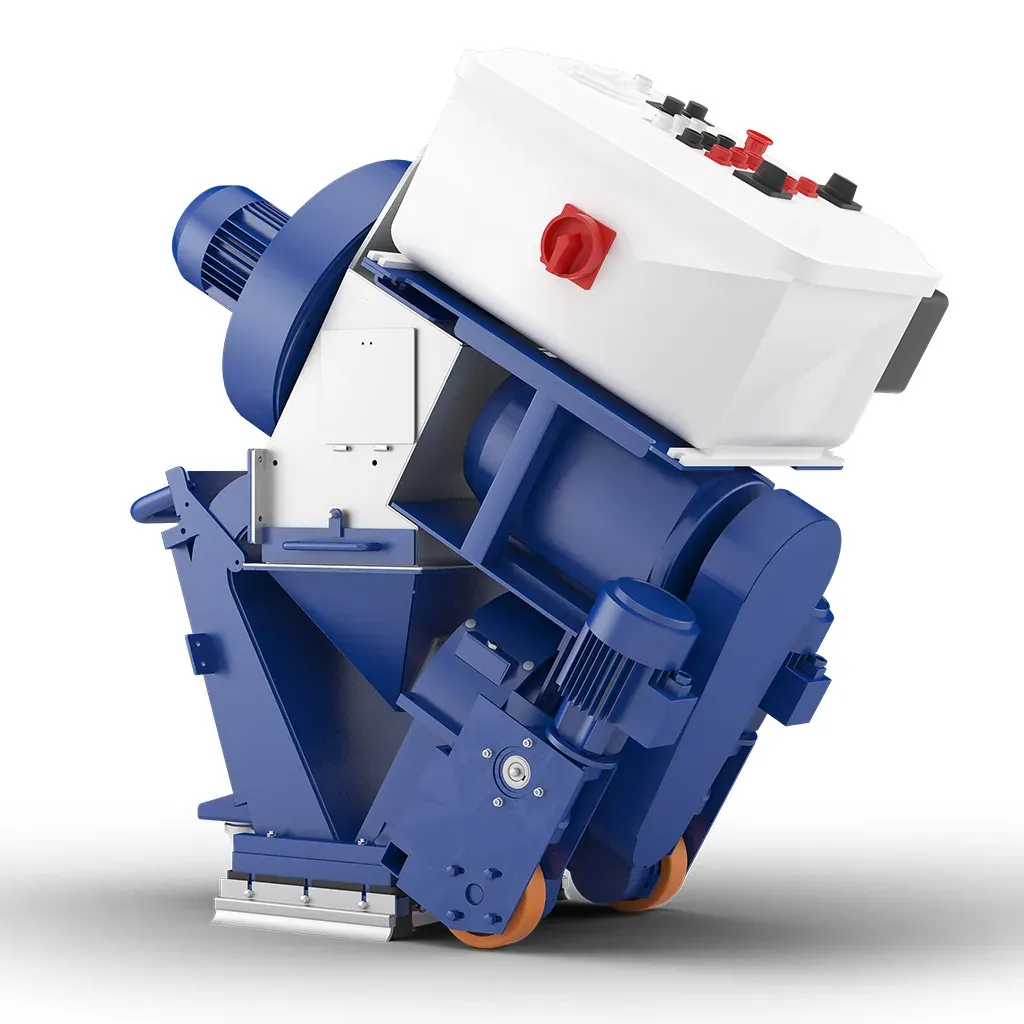

BLASTRAC 350EX STEEL BLASTER

350EX STEEL BLASTER

Blasting Width: 350 mm
Weight: 450 kg
Dimensions LxWxH: 1204 x 660 x 1227 mm
Rated Power Input: 11 kW
Voltage: 400 V
Frequency: 50/60 Hz
Rated Current: 32 A
Pin: 3 ph
Dust Hose Connection Ø: 127 mm
Noise Level: 90 dB(A)
Vibration: Less than 2.5 m/s²
Working Direction: Forward (Electrically Driven)
Blasting Capacity: Up to 38 m²/h on steel (SA 2.5)
Abrasive Consumption: 0.1 – 0.5 kg/m²
Drive System: Hydraulic 1 – 15 m/min
Surface: Steel

Description

350EX STEEL BLASTER

EQUIPPED WITH SPECIAL SAFETY DEVICES

Special electrical safety device, to be able to use the machine for storage tank and oil platform blasting. The Blastrac 350 EX is equipped with explosion-proof electrical panels (IP66/67) / (EXD II 2G d II B T4) & explosion-proof electrical motors.

Blastrac has designed a full range of dust collectors, consumables, and optional items which give the opportunity to process any specific application.



ADVANTAGES OF THE 350EX STEEL BLASTER:

  • Especially designed explosion-proof electrical panels (IP66/67) / (EXD II 2G d II B T4) & explosion-proof electrical motors.
  • Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.
  • Modular construction: allows the machine to be disassembled in only a few parts to pass through a Ø 600mm storage tank access hatch.
  • Electrical drive system with special gear which can also be used for tank slope blasting.
  • Independent drive for each rear wheel.
  • Increased productivity, reduced maintenance costs.
  • Fast and efficient removal of coatings, paint, rust, and mill scale.
  • Special electrical safety device, to be able to use the machine for storage tank blasting.
  • Ergonomic design and user-friendly control panel.
  • Specially designed to be used on internal tank bottoms & tank roofs and can be used as well on: ship decks, steel plates, platforms, oil platform helpdesks, oil platform walkways, smoke tracks, bridge decks, navy ship decks, and steel floors.
