Description

The Chameleon is the all-rounder amongst the Rokamat Machines – and at the same time easy and comfortable to use.

It also uses the well-proven Rokamat drive concept with a motor mounted on a waist belt, and power transmission via a flexible drive shaft. The handpiece of the versatile sanding machine with two contra-rotating tool discs weighs just 2.4 kg. This ensures smooth running and at the same time offers a large supporting and sanding area for plane surfaces. Like its name, given from the animal kingdom, the Chameleon perfectly adapts to all backgrounds.

A major advantage of the machine is the extensive range of accessories with which the Chameleon can be fitted . This allows you to master almost any sanding job without difficulty – and even clean concrete boarding. The fields of application are… sanding thermal insulation boards, rubbing up sanding final coats, smoothing base coats, scratching plasters, flattening wet concrete, and even stripping wallpaper. All this can be done by this unique machine which was also used in Berlin during the construction of the Holocaust Memorial between 2003 and 2005.The Rokamat Chameleon is known as one of the best and quickest wallpaper strippers on the market. It offers a lightweight product with smooth operation thanks to its contra-rotating discs and evenness due to the large operating surface. No longer will wallpaper removal be a tedious and time-consuming job.

Advantages:

Light weight
Smooth operation thanks to contra-rotating tool discs
Evenness thanks to large operating surface
Ample accessories for a wide range of applications
Separate drive motor to improve weight distribution
Vacuum take off point to minimise dust
Continuous speed control to optimise each different application
Low wheel speed – less risk of injury
Brake-proof
Compatible with rucksack vacuum cleaner for freedom of movement

Vacuum not included.

The Rokamat Chameleon can be used for a variety of different applications such as…

Rubbing up sanded final coat
Smoothing base coat
Scratching monocouche plaster

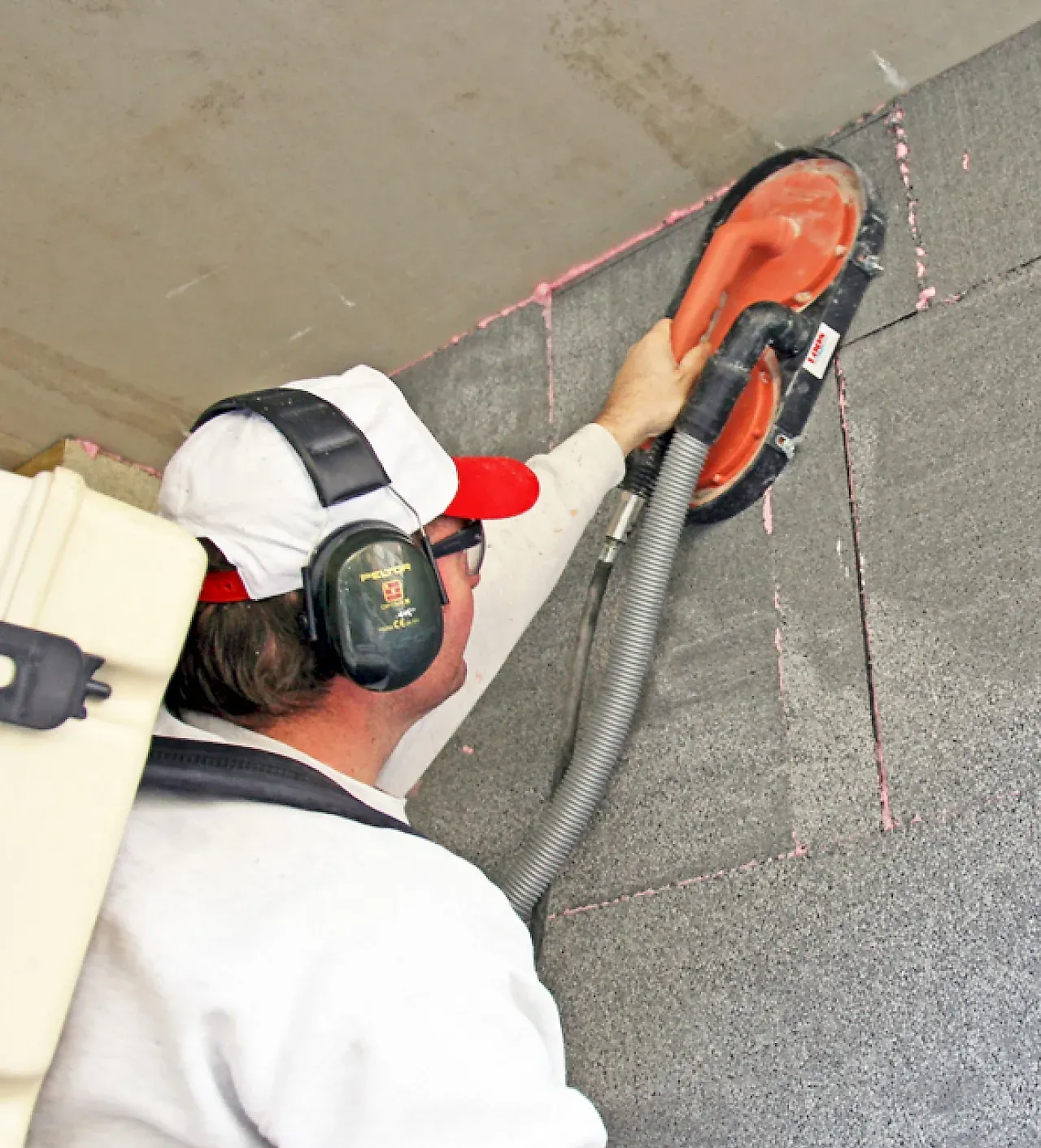

Thermal-insulation boards (surface grinding of rock wool-, polystyrene-, mineral boards etc.)
Flattening concrete
Cleaning concrete boarding
Cleaning and grinding off facade paints
Stripping wallpaper
Removing glue residue and Cleaning and polishing external finishes (metal, granite, clinker)

* Discs Sold Separately

Accessories

Cleaning

Description	No.
Steel brushes, fine	21200
Steel brushes, medium	21300
Steel brushes, coarse	21400
Special steel brushes, medium	23000
Special steel brushes, coarse	23100

Nylon brushes

Description	No.
Nylon brushes, superfine	21505
Nylon brushes, fine	21500
Nylon brushes, coarse	21600
Steel / nylon brushes	22500

Cleaning formwork units
Concrete residues on a pan or on steel frames can be easily removed with steel brushes. Once the surface skin is waxed with nylon brushes, it is ready for further use.
Further uses:
- removing old, loose plaster, render and paint
- cleaning exterior facades of moss and algae
- cleaning and preparing plaster for new coverings

Cleaning and Polishing

Description	No.
Cleaning Pad grid 80, coarse	23500
Cleaning Pad grid 120, medium	23400
Cleaning Pad grid 180, fine	23900

Description	No.
Polishing Pad, very fine	23300
Lambskin Pad, superfine	23600
(use with supporting plates No. 20700)

Cleaning buildings and facades
Polishing, for example “marble effect”
Polishing parquet

Scratching

Description	No.
Scratching discs “longlife”	20100

Nail plates with pointed pins for scratching sgraffito
Large working surface ensures both safe and flat working with the nailplates
They can also be used to scratch glass fibre wallpaper coatings

Removing old render

Description	No.
Widia discs	21700

For removing sanding old plasters and for roughening dry plaster.
Also adhesive residues of carpet glue and tiling adhesives can be milled off as well as heavy fouling on industrial floors (area performance for tiling adhesive: about 20 – 30 square metres per hour)

Smoothing

Description	No.
Smoothing attachments	25200
(use with base plate No. 25000)

Smoothing plates for abrading render and plaster after setting

Flattening concrete

Description	No.
Flattening plate	22700

For flattening concrete easily and quickly. To be used before the material has taken final set (sprayed concrete).

Description	No.
Flattening plates with trowel blades	22600

For hard trowelling (e. g. wet concrete inside silos)

Stripping wallpaper

Description	No.
Perforating discs	22200

Perforating wallpaper so that it can be easily soaked and stripped

Description	No.
Shaving plates	22300

For removing wallpaper, for cleaning shuttering or other shaving work

Description	No.
Guide rails	22210

Please use in combination with perforating and shaving discs

Description	No.
Sharpening board (for shaving plates)	22220

For re-sharpening the blades (shaving plates)

Description	No.
Premium Package “Removing Wallpaper”	22250

Perforating discs, shaving plates, sharpening board and guide rails.

Supporting plates

Description	No.
Supporting plates with velcro	20700

For mounting sanding discs, grinding grids, metal abrasive discs, cleaning and polishing pads

Description	No.
Emery grit 16 (4 pcs.) (f. polystyrene)	20816
Emery grit 24 (4 pcs.)	20824
Emery grit 40 (6 pcs.)	20840
Emery grit 60 (6 pcs.) (f. gypsum)	20860
Emery grit 80 (6 pcs.)	20880
Emery grit 100 (6 pcs.)	20810
Emery grit 120 (6 pcs.)	20812

Range of application

Surface grinding
- polystyrene insulating boards, rock wool or other thermal insulating systems (EIFS and ETICS)
- taped board joints
- plaster background (1st layer of the render)
Roughening up polystyrene surfaces for next application
Cleaning shuttering pans (when concrete residues are hardened)

JÖST Superpads

Description	No.
Jöst Superpad 40 (6 pcs.)	28040
Jöst Superpad 40 (6 pcs.)	28060
Jöst Superpad 40 (6 pcs.)	28080
Jöst Superpad 40 (6 pcs.)	28012
Jöst Superpad 40 (6 pcs.)	28018
Jöst Superpad 40 (6 pcs.)	28022

Thanks to unique full-surface perforations and patented Velcreo-type system on the rear side of the sanding medium allows:
- permanent full-surface dust extraction
- no clogging (keeps contact and removal at the optimum)
- a higher sanding capacity (up to 4 times more compared to conventional sanding media)
- shorter sanding time and more effective working

Grinding grids

Description	No.
Grinding grit 80 (4 pcs.)	27080
Grinding grit 100 (6 pcs.)	27010
Grinding grit 120 (6 pcs.)	27012
Grinding grit 180 (6 pcs.)	27018
Grinding grit 220 (6 pcs.)	27022

For plaster, filler, etc.

For aggressive grinding

Description	No.
Metal abrasive discs, fine	22400
Metal abrasive discs, medium	23200
Metal abrasive discs, coarse	22900

For grinding timber, brick, screed, carpet ramains, fibreglass, gas concrete and many other materials.

Shoulder strap

Description	No.
Shoulder strap	05100

With shoulder pad and length adjustment.
