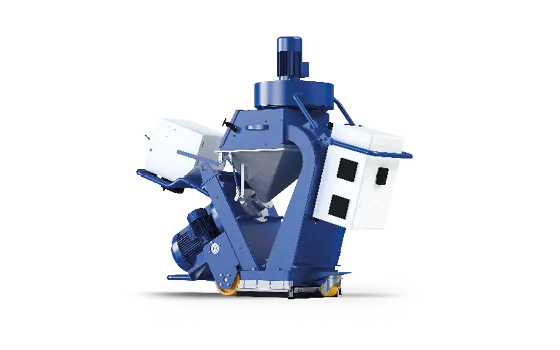

BLASTRAC 500E (50HZ) STEEL BLASTER

500E (50HZ) STEEL BLASTER

Blasting Width: 500 mm
Weight: 742 kg
Dimensions LxWxH: 1938 x 740 x 1672 mm
Rated Power Input: 22 kW
Voltage: 400 V
Frequency: 50 Hz
Rated Current: 63 A
Pin: 3 ph
Dust Hose Connection Ø: 150 mm
Noise Level: 92 dB(A)
Vibration: Less than 2.5 m/s²
Working Direction: Forward (Electrically Driven)
Blasting Capacity: Up to 75 m²/h on steel (SA 2.5)
Abrasive Consumption: 0.1 – 0.5 kg/m²
Drive System: Electric 1 – 15 m/min
Surface: Steel

Description

500E (50HZ) STEEL BLASTER

A STEEL BLASTER WITH A WORKING WIDTH OF 500 MM

The Blastrac 500E Global steel blast cleaning machine has a great production width the 500E boasts a higher productivity rate for larger jobs. The 500E has an easily assembled modular construction to allow it to pass through narrow openings and hard-to-reach places for steel cleaning. The Blastrac 500E steel blast cleaning machine is ideal for large horizontal steel surfaces, like; ship decks, steel plates, oil platforms helicopter decks and walkways, and bridge decks. Blastrac has designed a full range of dust collectors, consumables, and optional items which give the opportunity to process any specific application.



ADVANTAGES OF THE 500E (50HZ) STEEL BLASTER:

  • Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.
  • Modular construction: allows the machine to be disassembled in only a few parts to pass through a Ø 600mm storage tank access hatch.
  • Electrical drive system with special gear which can due to this also be used for tank slope blasting.
  • Independent drive for each rear wheel.
  • Increased productivity, reduced maintenance costs.
  • Fast and efficient removal of coatings, paint, rust, and mill scale.
  • Special electrical safety device, to be able to use the machine for storage tank blasting.
  • Ergonomic design and user-friendly control panel
  • Low height (1.460 mm or 1.270 mm) achievable with standard or special lower adaptor system.
