NON-DESTRUCTIVE MOISTURE METER FOR CONCRETE

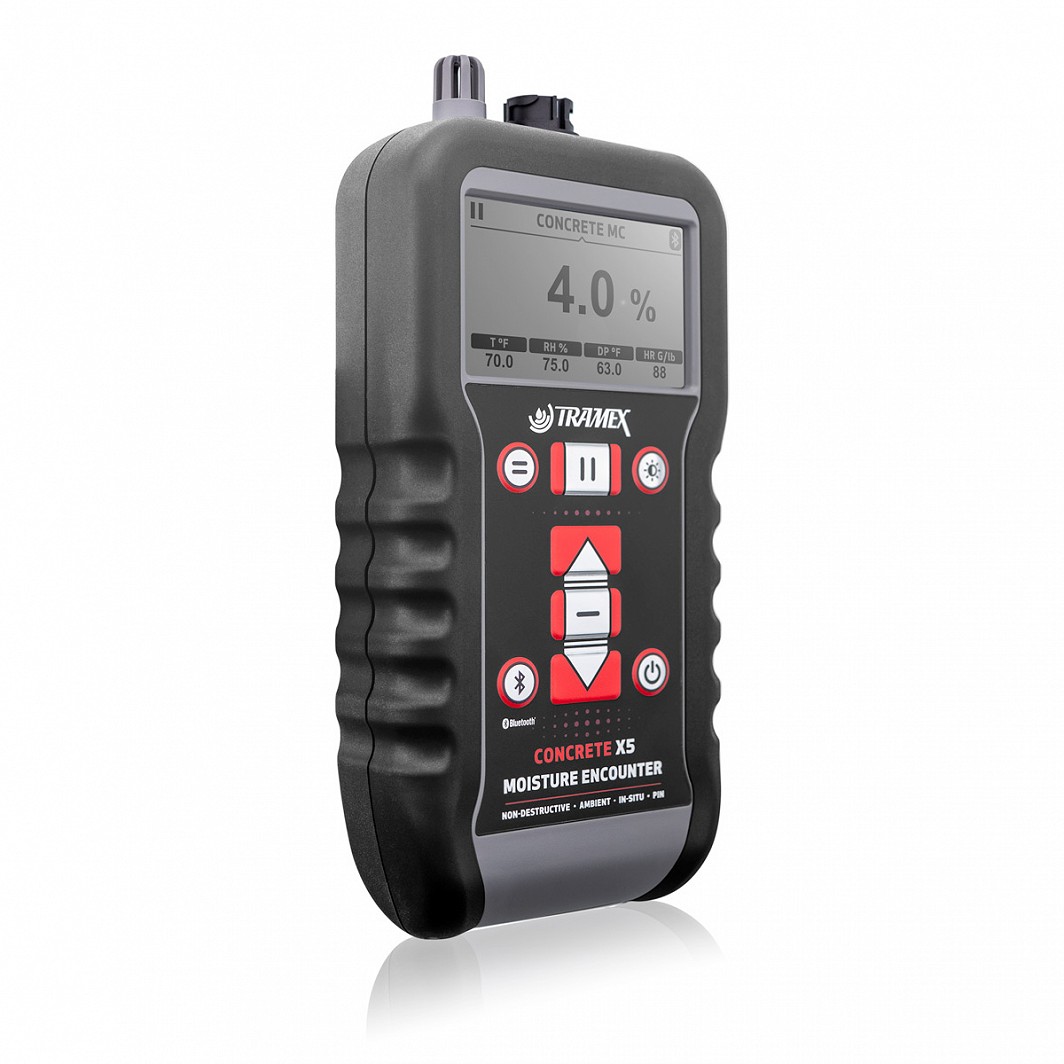

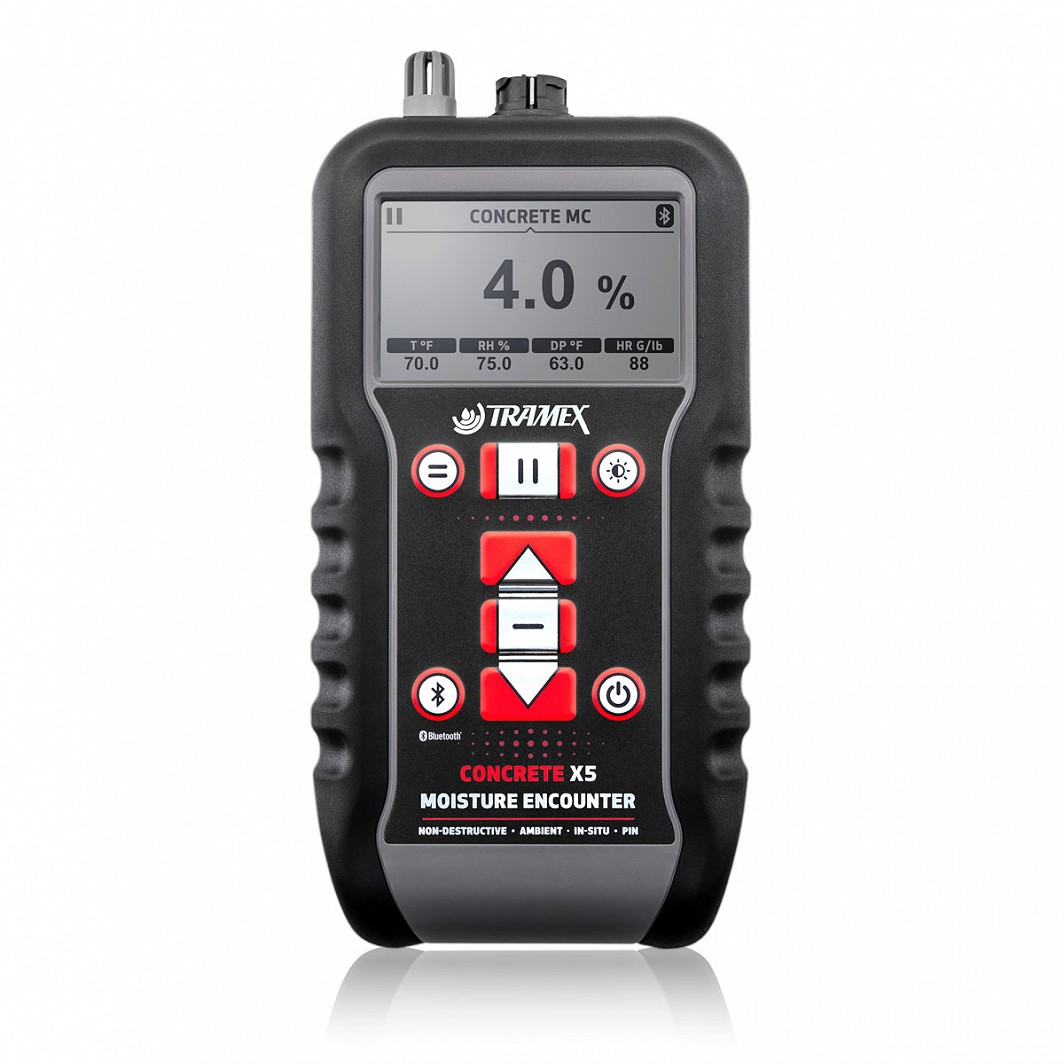

The Concrete Moisture Encounter X5 (CMEX5), is The Digital Multi Moisture Meter for Concrete designed and built by Tramex Meters for the specific needs of many industries including the Flooring, Water Damage Restoration, Inspection, Surveying and Indoor Air Quality industries. Bluetooth connection allows for continual development and integration of apps and reporting to accompanying IOS & Android App.
Size: 7.1″ x 3.4″ x 1.6″ (180mm x 85mm x 40mm)
Weight: 12.59oz (357g)
Construction: ABS Body
Power: 2 x AALR6 ALKALINE (included)
Depth of penetration in concrete: approx. 3⁄4″ (20mm)
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity 0 → 99%
(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes): 5 → 30 %
This Concrete Moisture Encounter has 4 measurement modes:

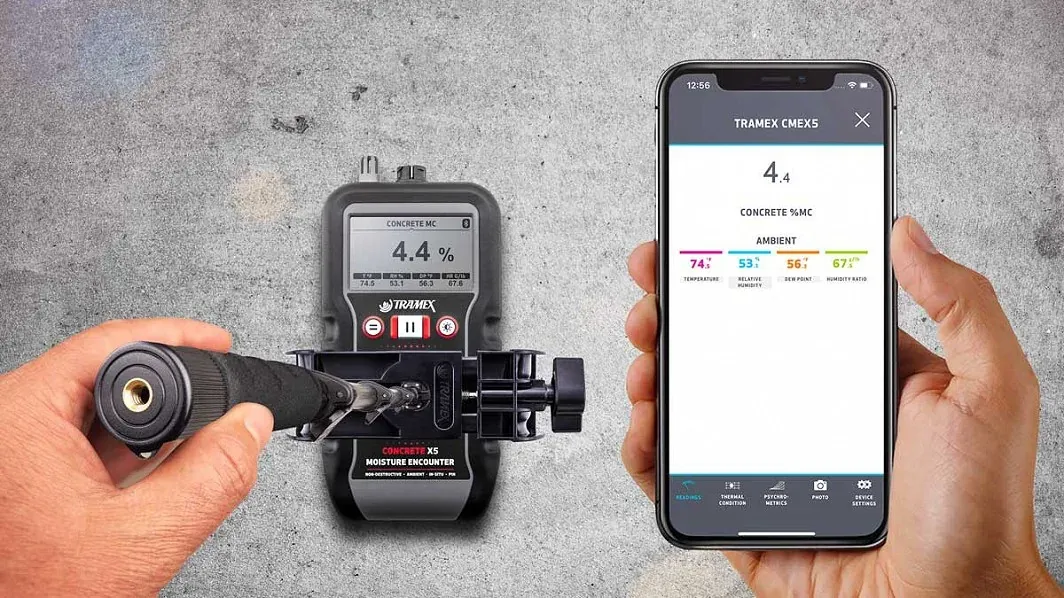

- Non-destructive test (NDT) mode: The Tramex Concrete Moisture Encounter X5 is a non-destructive digital multi moisture meter for concrete floors and slabs providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659.
- Hygrometer mode: The built-in Ambient Relative Humidity Sensor measures Ambient Relative Humidity, Temperature, Dew Point, and Humidity Ratio (or Mixing Ratio) of the environment.

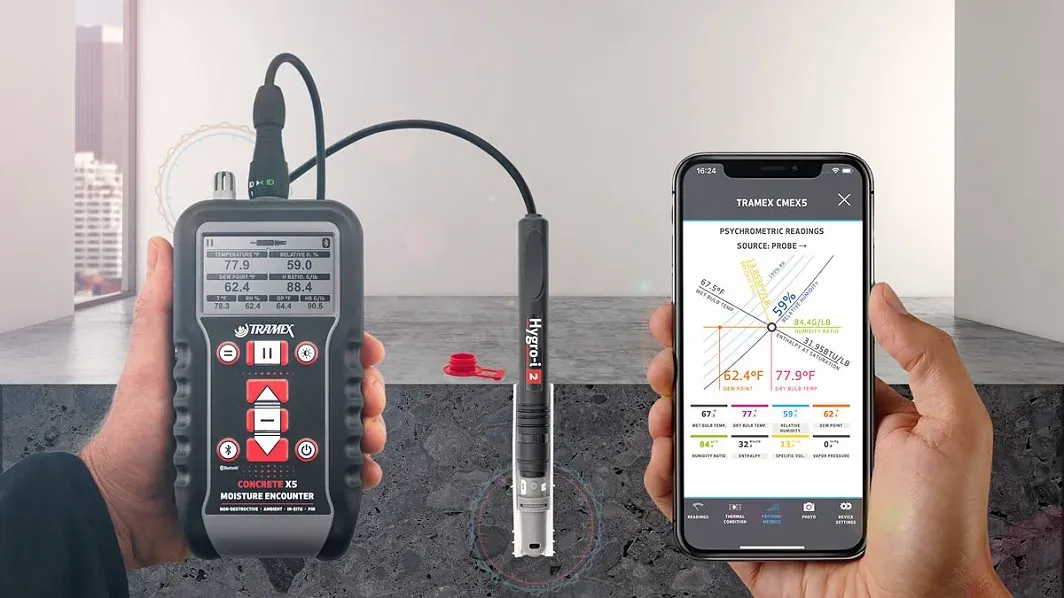

- Equilibrium Relative Humidity mode (optional plug-in probe): Using the optional plug-in Hygro-i2 RH probes, the Concrete Moisture Encounter X5 will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325). Relative Humidity Probes can also be used for ambient RH measurements within air spaces.

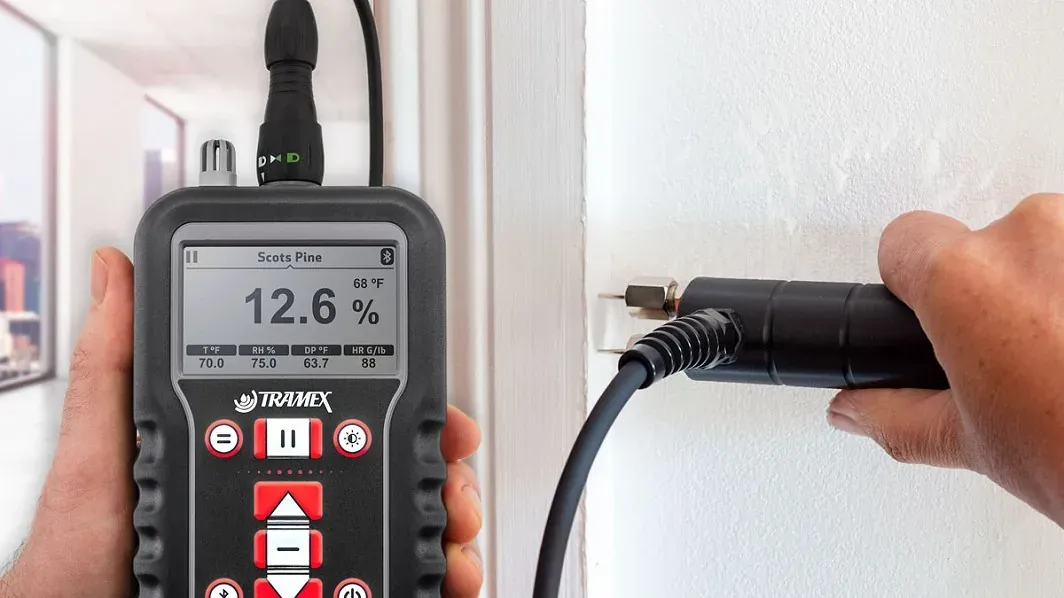

- PIN Meter mode (optional plug-in probe): The Concrete Moisture Encounter X5 becomes a resistance type meter and measures the percentage moisture content (%MC) of wood when used with the optional plug-in PIN meter. International wood standards or pre-programmed wood species can be selected. PIN meter mode can also be used for Drywall and WME (Wood Moisture Equivalent) readings for other materials.
