TRAMEX KIT – Roof Inspection Kit (RIK5.1)

TRAMEX ROOF INSPECTION KIT

The Roof Inspection Kit allows for point-of-contact, non-destructive checking of moisture conditions in roofing and waterproofing systems up to approximately 4 inches in depth, as well as non-destructive measurement of moisture conditions in concrete decks, wood decks and ambient relative humidity & dew-point conditions. Featuring the handheld Tramex RWS Roof and Wall Scanner non-invasive impedance scanner and the Tramex CMEX II electronic moisture meter and Hygro-i ® relative humidity probe. This kit comes in a protective, heavy-duty carrying case with die-cut foam lining.

Features of the RWS

  • For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications.
  • Detects, locates and traces leaks in concrete flooring.
  • To evaluate the extent of the moisture problem and help trace and pin-point its source.
  • Multi-mode functions allowing for depth penetration and sensitivity selection.
  • Fast and easy to operate giving instant clear readings.
  • “Hold” function facilitates ease of recording readings.
  • Lightweight, handheld and battery operated.
  • Inexpensive to purchase and operate compared to other non-destructive testing methods.

Features of the CMEX II

  • Measures up to 6.9% Moisture Content in Concrete.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • Attaches to a relative humidity Hygro-i ® probe for in-situ testing of concrete and ambient conditions.
  • 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment.

Description

SPECIFICATIONS

  • Size: 19.2″ x 14.9″ x 5.7″ (487mm x 380mm x 145mm)
  • Weight: 9.9lbs (4.51kg)
  • Power: 3 x 9 volt PP3
  • Batteries (included)

Measuring range – RWS:

  • Depth of penetration: 4″ (100mm)
  • Reference scale: (NDT*) 0 to 100

Measuring range CMEX II:

  • Depth of penetration in concrete:(NDT*) approx. ¾” (20mm)
  • Moisture content for Concrete: (NDT*) 0 to 6.9 %
  • Comparative for Gypsum floor screed: (NDT*) 0 to 10
  • Reference scale: (NDT*) 0 to 100
  • Moisture Content for wood (with Pin Probe) 7 to 40%
  • Relative Humidity (with Hygro-i ® probe): 0 to 99%
  • Humidity accuracy: 10% to 90%RH +/-1.8% @ 25°C / 77°F
  • Depth of penetration: 4″ (100mm)
  • Reference scale: (NDT*) 0 to 100 *NDT – Non-destructive Test

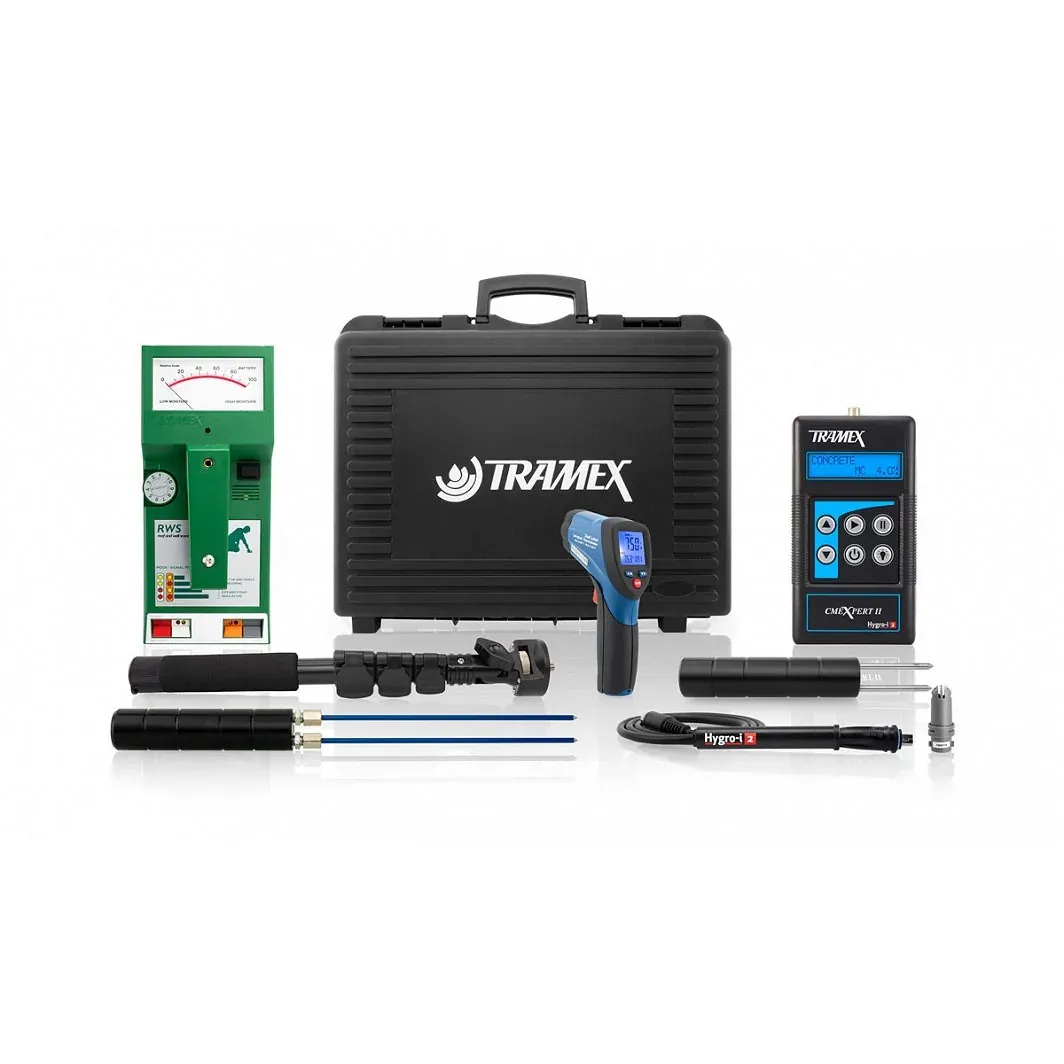

Kit Contents

1. RWS – Roof and Wall Scanner + telescopic handle (for use on roofs)

2. CMEX II – concrete meter

3. 1 x Hygro-i ® probe

4. Hand held electrode with 7″ insulated pins

5. Hole Punch

6. Infrared thermometer
