TRAMEX KIT – Roof Master Kit (RMK 5.1)

TRAMEX ROOF MASTER KIT

The Roof Master Kit is the complete kit for the Roofing Professional, allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing systems, per ASTM D7954, up to 6 inches in depth, as well as non-destructive measurement of moisture conditions in concrete decks, measurement of moisture conditions in wood decks, and ambient relative humidity and dew point conditions. This kit comes in a protective heavy-duty wheeled carry case with die-cut foam lining.

Features of the Dec Scanner:

  • Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
  • Ergonomic, easy-reach and easy to operate control panel.
  • Leak tracing, problem sourcing and an instantaneous and clear indication of roof condition.
  • Fast and accurate readings over large roof areas in a short time frame.
  • Faster and more user friendly than nuclear meters

Features of the RWS:

  • For non-destructive moisture evaluation of Roofs, EIFS, foam insulation systems & other building envelope applications.
  • To evaluate the extent of the moisture problem and help trace and pin-point its source.
  • Multi-mode functions allowing for depth penetration and sensitivity selection.
  • Fast and easy to operate giving instant clear readings.

Features of the CMEX II:

  • Measures up to 6.9% Moisture Content in Concrete.
  • Large clear backlit digital display.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment. (optional)
  • Attaches to a relative humidity Hygro-i ® probe for in situ testing of concrete to ASTM F2170. (optional)

Description

SPECIFICATIONS

  • Size: 41.2″ x 21.1″ x 12″ (1045mm x 535mm x 305mm)
  • Weight: 59.5lbs (27kg)
  • Power: 5 x 9 volt PP3
  • Batteries (included)

Measuring range – Dec Scanner:

  • Depth of penetration: 6″ (152mm)
  • Reference scale: (NDT*) 0 to 100

Measuring range – RWS:

  • Depth of penetration: 4″ (100mm)
  • Reference scale: (NDT*) 0 to 100

Measuring range – CMEX II:

  • Depth of penetration in concrete: (NDT*) approx. ¾” (20 mm)
  • Moisture content for Concrete: (NDT*) 0 to 6.9 %
  • Comparative for Gypsum floor screed: (NDT*) 0 to 10
  • Reference scale: (NDT*) 0 to 100
  • Moisture Content in wood (with Pin Probe) 7 to 40%
  • Relative Humidity (with Hygro-i ® probe): 0 to 99%
  • Humidity accuracy: 10% to 90%RH +/-1.8% @ 25°C / 77°F
  • *NDT – Non-destructive Test

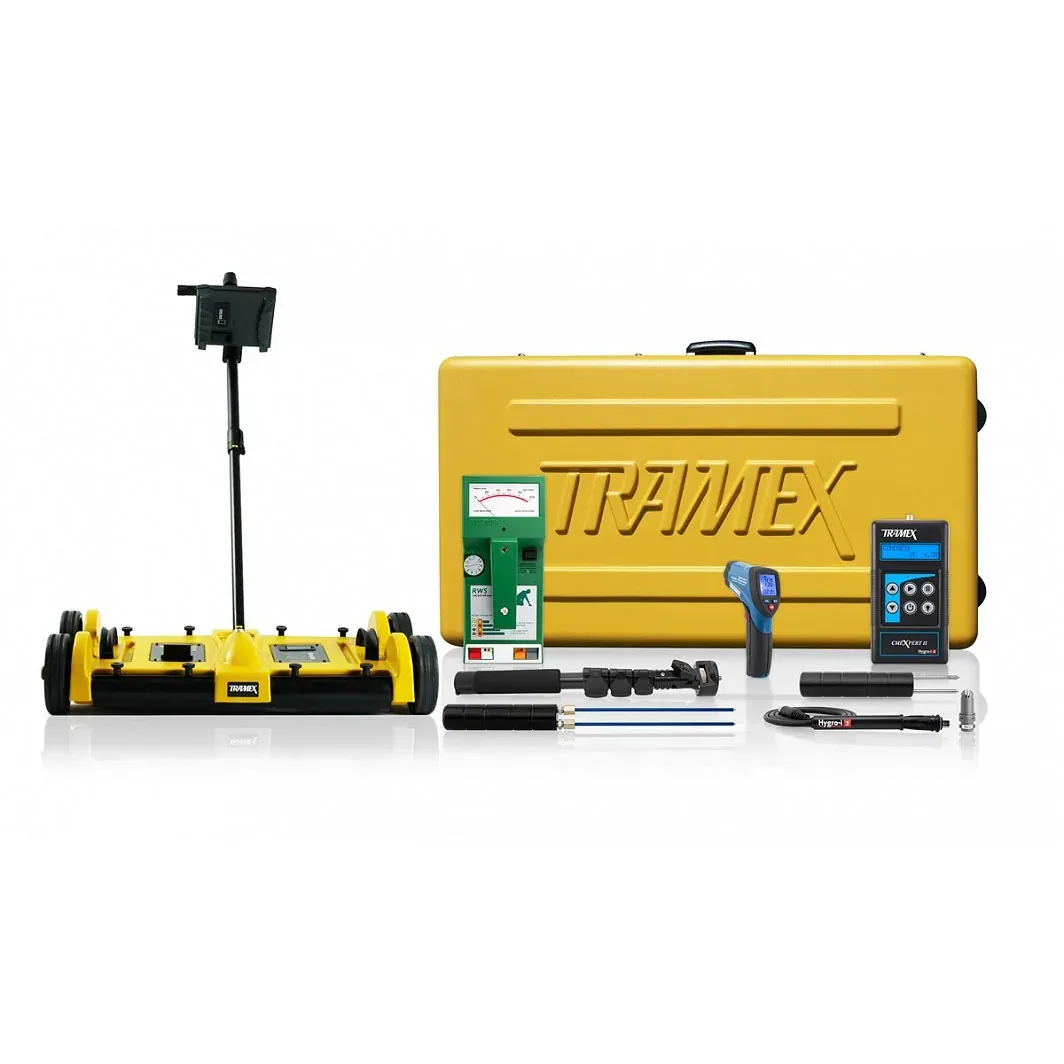

Kit Contents

1. Dec Scanner

2. RWS – Roof and Wall Scanner + telescopic handle (for use on roofs).

3. CMEX II – concrete moisture meter.

4. 1 x Hygro-i ® probe.

5. Hand held electrode with 7″ insulated pins.

6. Hole Punch.

7. Infrared thermometer.
