Baumann
BAUMANN iM4 Buddy Plastering Machine for hire
Compact worm pump plastering machine for pumpable premixed dry mortars up to 4 mm grain size.
For rent
Hire this machine
Rates depend on the dates and the job, so every hire is quoted. Tell us when and for how long, and we will confirm availability and the rate.
Ask for a rental quote
Specifications
| Pump type | D5-2.5 B Power |
|---|---|
| Theoretical delivery rate | 25 l/min |
| Delivery pressure | 40 bar |
| Delivery distance | Up to 40 m horizontally, 15 m high |
| Air compressor | 0.55 kW, 200 l/min |
| Drive pump | 400 V, 50 Hz, 5.5 kW, 392 rpm |
| Drive hopper | 1.1 kW at 23 rpm |
| Tank capacity | 115 L |
| Water pump | 0.78 kW at 3.4 m³/h |
| Maximum grain size | 4 mm |
| Weight | 240 kg |
| Length | 1,324 mm |
| Width | 728 mm |
| Height | 1,443 mm |
| Filling height | 984 mm |
| Discharge connection | M 35 |
Downloads
Product description

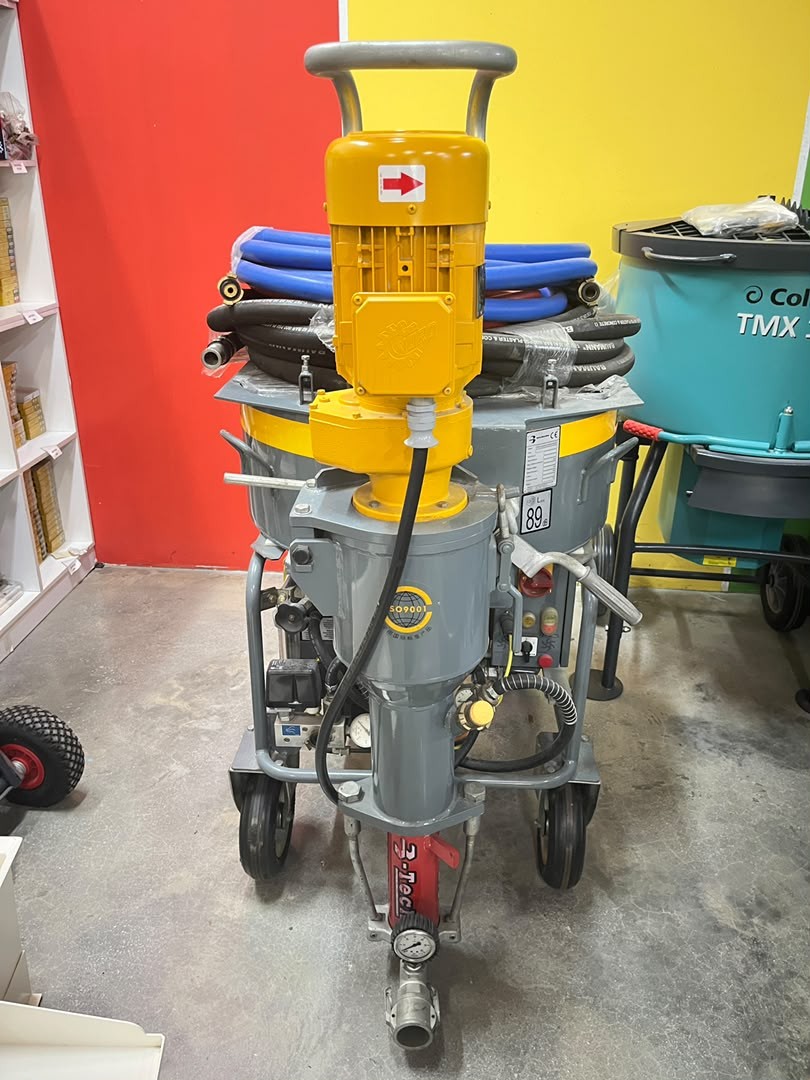

The BAUMANN iM4 Buddy is a compact worm pump plastering machine with its own air compressor and water pump. It processes pumpable premixed dry mortars up to a grain size of 4 mm, for spraying inside and outside.
Suitable materials include adhesive mortars, reinforcement mortars, fire proofing mortars, texturing plasters, self levelling mortars and gypsum plaster.
The theoretical delivery rate is 25 litres a minute at 40 bar, over up to 40 m horizontally or 15 m in height. The actual rate depends on the rotor and stator, the pump speed and the material. The machine is easy to take apart for transport.
