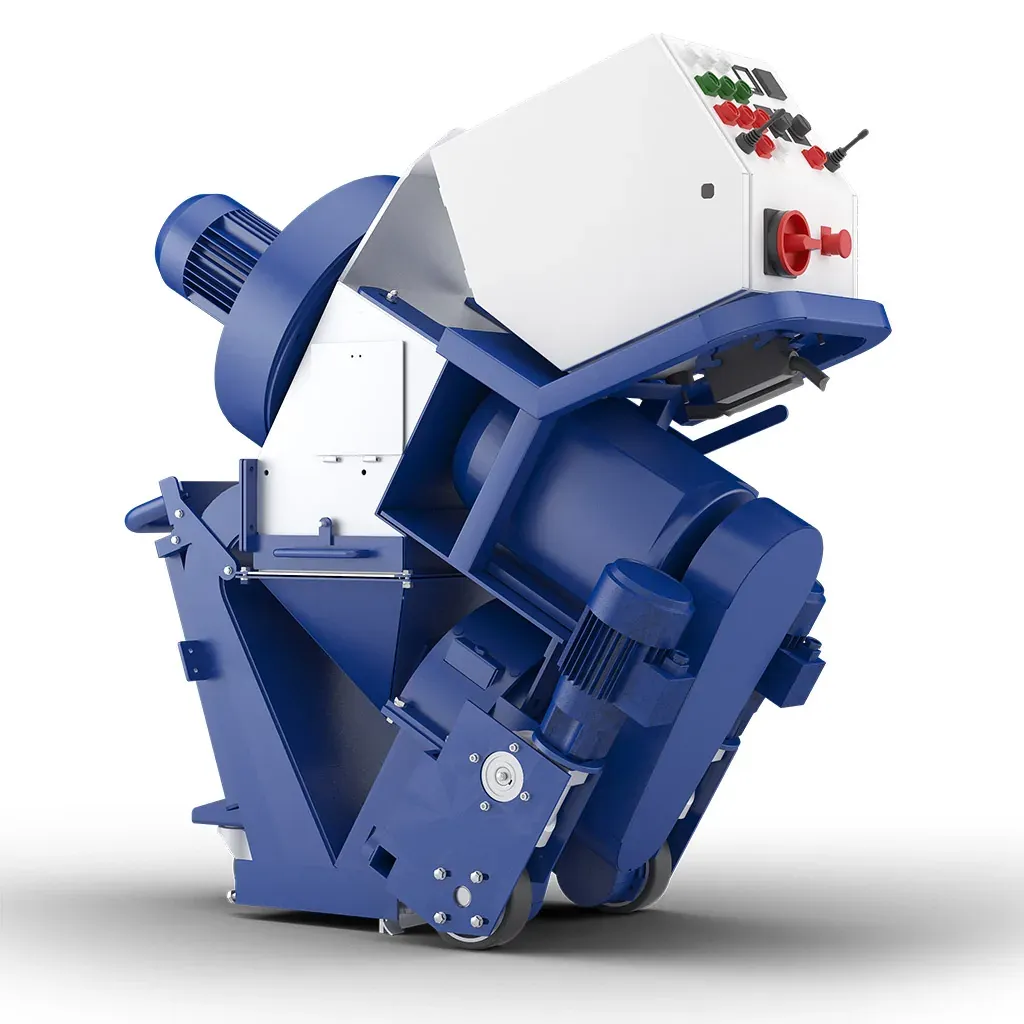

BLASTRAC 350E STEEL BLASTER

350E STEEL BLASTER

Blasting Width: 350 mm
Weight: 430 kg
Dimensions LxWxH: 1350 x 650 x 1100 mm
Rated Power Input: 11 kW
Voltage: 400 V
Frequency: 50/60 Hz
Rated Current: 32 A
Pin: 3 ph
Dust Hose Connection Ø: 127 mm
Noise Level: 90 dB(A)
Vibration: less than 2.5 m/s²
Working Direction: Forward (Electrically Driven)
Blasting Capacity: Up to 38 m²/h on steel (SA 2.5)
Abrasive Consumption: 0.1 – 0.5 kg/m²
Drive System: Electric 1 – 15 m/min
Surface: Steel

Description

350E STEEL BLASTER

A STEEL BLASTER WITH A WORKING WIDTH OF 350 MM

The Blastrac 350E Steel Shot blaster is perfect for small and medium-sized jobs. Its modular construction allows for it to be easily disassembled and reassembled through a space of 600 mm.

The 350E steel blast-cleaning machine is specially designed to be used on internal tank bottoms or tank roofs and can equally be used on ship decks, steel plates, oil platform helicopter decks and walkways, bridge decks, navy ship decks, and steel floors. Blastrac has designed a full range of dust collectors, consumables, and optional items which give the opportunity to process any specific application.



ADVANTAGES OF THE 350E STEEL BLASTER:

  • Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.
  • Modular construction: allows the machine to be disassembled in only a few parts to pass through a 600 mm storage tank access hatch.
  • Electrical drive system with special gear which can due to this also be used for tank slope blasting.
  • Independent drive for each rear wheel.
  • Increased productivity, reduced maintenance costs.
  • Fast and efficient removal of coatings, paint, rust, and mill scale.
  • Special electrical safety device, to be able to use the machine for storage tank blasting.
  • Ergonomic design and user-friendly control panel.
