BLASTRAC 500S (50HZ) STEEL BLASTER
Usually in stock
500S (50HZ) STEEL BLASTER
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Blasting Width | 500 mm |
|---|---|
| Weight | 752 kg |
| Dimensions (L x W x H) | 1560 x 750 x 1650 mm |
| Rated power input | 22 kW |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Rated Current | 63 A |
| Pins | 3 ph |
| Dust Hose Connection Ø | 150 mm |
| Noise Level | 92 dB(A) |
| Vibration | Less than 2.5 m/s² |
| Working Direction | Forward (Hydraulically Driven) |
| Blasting Capacity | Up to 75 m²/h on steel (SA 2.5) |
| Abrasive Consumption | 0.1 – 0.5 kg/m² |
| Drive System | Hydraulic 1 – 30 m/min |
| Surface | Steel & Concrete |
Product description

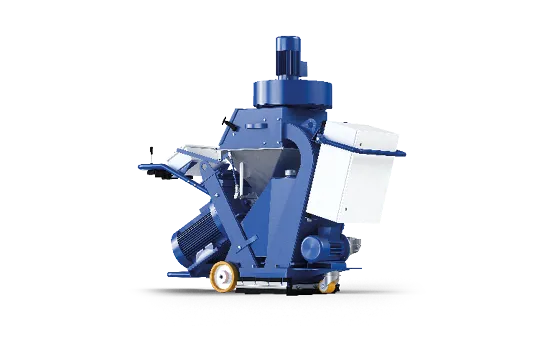

500S (50HZ) STEEL BLASTER
A HYDRAULIC STEEL BLASTER 500 MM
The Blastrac 500S is a hydraulic-driven steel blast cleaning machine. With its 500mm working width and increased productivity, the 500S will reduce time on the job and maintenance costs. Similar to the 350S, the Blastrac 500S steel blast cleaning machine is ideally suited for medium and large-sized horizontal steel cleaning jobs and applications, like; ship decks, steel plates, oil platforms helicopter decks, and walkways and bridge decks. Blastrac has designed a full range of dust collectors, consumables, and optional items which give the opportunity to process any specific application.
ADVANTAGES OF THE 500S (50HZ) STEEL BLASTER:
Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.
Hydraulic drive system.
Independent drive for each rear wheel.
Increased productivity, reduced maintenance costs.
Fast and efficient removal of coatings, paint, rust, and mill scale.
Ergonomic design and user-friendly control panel
