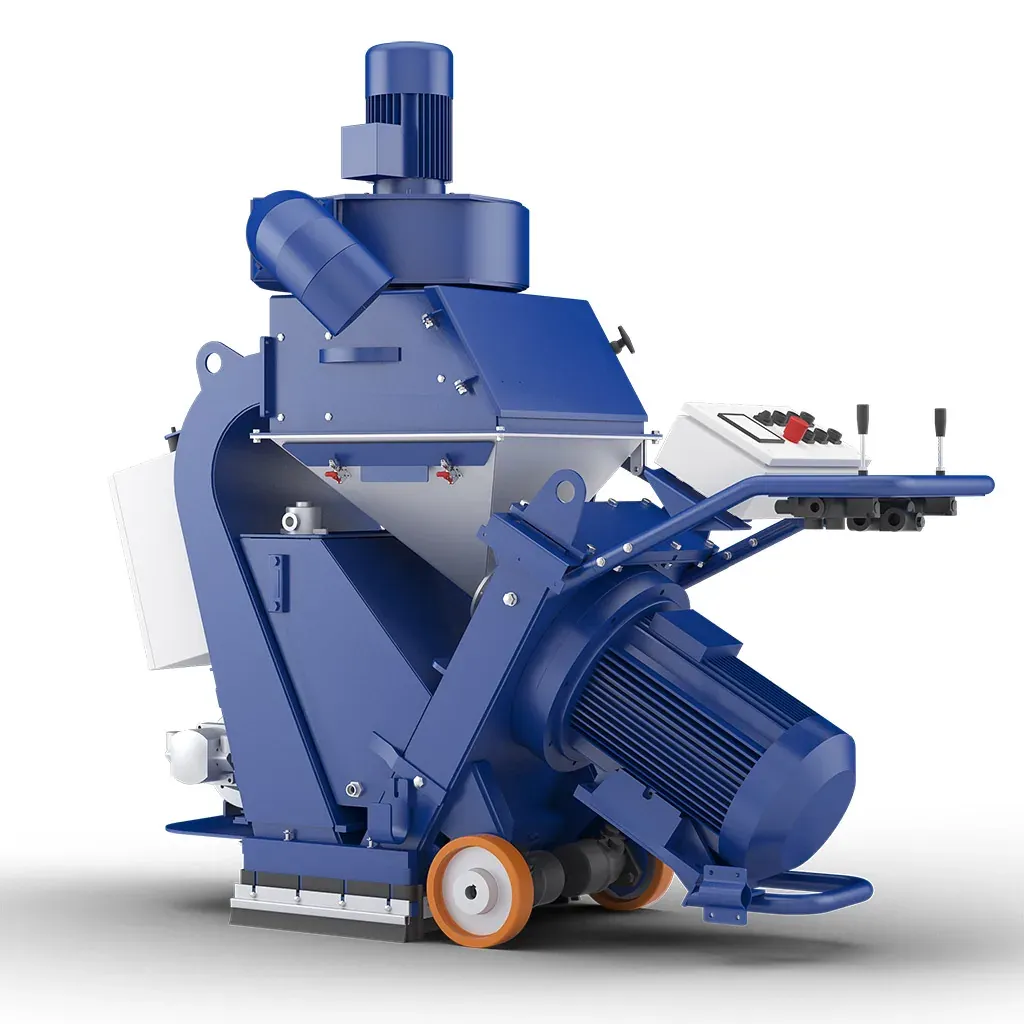

BLASTRAC 500S (60HZ) STEEL BLASTER)

Name: BLASTRAC 500S (60HZ) STEEL BLASTER)
Brand: Blastrac

Usually in stock

500S (60HZ) STEEL BLASTER

Request a quote

Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.

Quantity

Compare

Specifications

Blasting Width	500 mm
Weight	650 kg
Dimensions (L x W x H)	1560 x 750 x 1650 mm
Rated power input	22 kW
Voltage	400 V
Frequency	60 Hz
Rated Current	63 A
Pins	3 ph
Dust Hose Connection Ø	150 mm
Noise Level	92 dB(A)
Vibration	Less than 2.5 m/s²
Working Direction	Forward (Hydraulically Driven)
Blasting Capacity	Up to 75 m²/h on steel (SA 2.5)
Abrasive Consumption	0.1 – 0.5 kg/m²
Drive System	Hydraulic 1 – 30 m/min
Surface	Steel & Concrete

Product description

500S (60HZ) STEEL BLASTER

A HYDRAULIC STEEL BLASTER 500 MM

The Blastrac 500S is a hydraulic-driven steel blast cleaning machine. With its 500mm working width and increased productivity, the 500S will reduce time on the job and maintenance costs. Similar to the 350S, the Blastrac 500S steel blast cleaning machine is ideally suited for medium and large-sized horizontal steel cleaning jobs and applications, like; ship decks, steel plates, oil platforms helicopter decks, and walkways and bridge decks. Blastrac has designed a full range of dust collectors, consumables, and optional items which give the opportunity to process any specific

application.

ADVANTAGES OF THE 500S (60HZ) STEEL BLASTERS:

Closed-circuit which is dust-free, when connected to an appropriate Blastrac dust collector.

Hydraulic drive system.

Independent drive for each rear wheel.

Increased productivity, reduced maintenance costs.

Fast and efficient removal of coatings, paint, rust, and mill scale.

Ergonomic design and user-friendly control panel
