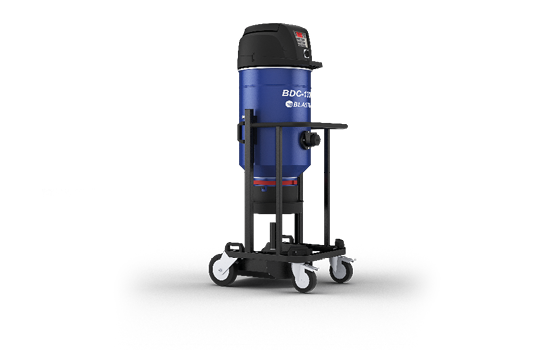

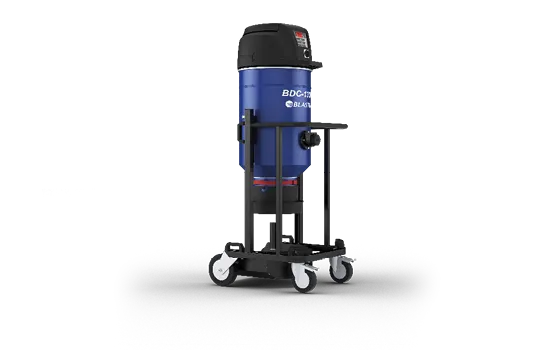

BLASTRAC BDC-133MUD DUST COLLECTOR

BDC-133MUD DUST COLLECTOR

Airflow: 390 m³/h
Vacuum: 211 hPa
Dust Extraction Motor: 3 Independent Motors
Weight: 73 kg
Working Position LxWxH: 800 x 600 x 1650 mm
Transport Position LxWxH: 800 x 600 x 1300 mm
Filter: M-Class Star Filter, Manual shaker on top
Rated Power Input: 3 kW
Voltage: 230 V
Frequency: 50/60 Hz
Rated Current: 13 A
Pin: 1 ph
Dust Hose Inlet: Ø 70 mm
Dustbin: Endless bagging system, Adjustable capacity up to 25 kg
Noise Level: 71 dB(A

Description

BDC-133MUD DUST COLLECTOR

HEAVY-DUTY DUST COLLECTION SYSTEM

The Blastrac BDC-133MUD is a heavy-duty dust collection system completely M-class certified. The BDC-133MUD is ideally suited for use with medium size shot blasting, grinding, polishing, and scarifying machines. It comes equipped as standard with an M-class star filter and with a Longopac bagging system, which is easy to mount and handle. Because of this system, there is no contact between the operator and the dust, creating a safe working environment.



ADVANTAGES OF THE BDC-133MUD DUST COLLECTOR:

  • M-class certified dust collector
  • Only available with the Longopac system
  • Easy to clean using the manual hand shaker
  • Up & Down system (transport & working positions)
