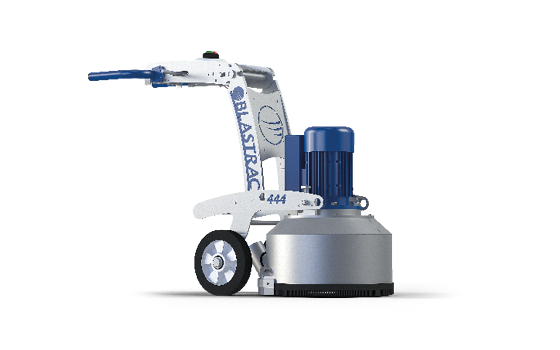

BLASTRAC BMG–444 TRIPLE DISC GRINDER

BMG–444 TRIPLE DISC GRINDER

Working Width: Ø444 mm
Weight: 132 kg
Working Position LxWxH: 1310 x 508 x 982 mm
Transport Position LxWxH: 794 x 508 x 907 mm
Rated Power Input: 3.0 kW
Voltage: 400 V
Frequency: 50 Hz
Rated Current: 16 A
Pin: 3 ph
RPM: 720 rpm
Working Direction: Forward (Push)
Dust Hose Connection Ø: 76 mm
Noise Level: 76 dB(A)
Vibration: Less than 2.5 m/s²
Surface: Concrete, Stone, Asphalt, Marble, Granite & Terazzo

Description

BMG–444 TRIPLE DISC GRINDER

THE SMALLEST TRIPLE DISC GRINDER OF OUR RANGE

The Blastrac BMG-444 is the smallest planetary triple head grinder of our range. Due to its wide wheelbase, it is easy to maneuver with minimum vibrations and a low noise level. Thanks to the adjustable steering handle that includes a storage place for a smartphone, it is easy to keep control over the machine. In addition, the BMG-444 can be folded or dismantled in three parts for easy transportation upstairs or onto small vehicles.

The BMG-444 is standard delivered with 3 Slidemag adapter plates that can be equipped with any type of Slidemag wings. Like all our triple disc grinders, the BMG-444 has a toothed lower belt for heavy-duty surface preparation jobs.

The BMG-444 is designed for various sizes of horizontal surface preparation applications. It is an ideal machine for companies dealing with the removal of coating, concrete grinding, floor renovation, or polishing applications. The BMG-444 triple head grinder is almost dust free when connected to the appropriate dust collection system.



ADVANTAGES OF THE BMG-444 FLOOR GRINDER:

  • The planetary system of the BMG-444 is in a completely casted housing for 100% sealing of the lower belt against dust and water. It makes the machine very easy to clean without any risk!
  • The BMG-444 is equipped as standard with a local dust exhaust of Ø76 mm, a floating shroud, and an extra nozzle for better suction performance. It also has an adjustable water hose connection.
  • The floating shroud of the BMG-444 is made of one single piece and is very easy to lock for changing tools and transport.
  • The BMG-444 is standard delivered with the Ø155 mm Slidemag adapter plates, where the Slidemag wings can be easily slid in and out.
