CONTEC Floor Planers (Scarifiers and Shavers) – CT 320

Technical Data

		Drive Unit Motor
Working Width	320 mm
Voltage	400 V
Frequency	50 Hz
Phase	3
Current Consuption	20.6/26.9/32.6 A
Motor Rating	11/15/18.5 kW	0.17 kW
Motorn nominal Current	19.4/25.7/31.4 A	1.2 A
Motor Rotation Speed	2945/2935/2935 rpm	3000 rpm
Weight	278/290/300 kg
Height	118 cm
Length	98 cm
Width	63 cm
Tool rpm	1649/1644/1644 rpm
Recommended Dust Collector	TORNADO
Dust Port Diameter	70/120 mm

Categories: Contec, Contec Machinery, Floor Planer, Floor Planers/Scarifiers/Shavers, Industrial Flooring, Shop All Products, Shop By Brand, Shop By Industry, Shot Blasting / Scarifying Machine Tags: contec, Contec Floor Planer, Contec Floor Planer CT320, Farmyard Grooving, Grooving

Description

Description

The biggest and most aggressive floor planer from CONTEC©. Made for the hardest applications and floors. Heavy duty bearings ensure maintenance and trouble-free operation of the machine. CT 320 ®is equipped with a variable speed drive unit. Ergonomically designed handle bars ensure comfortable operation of the floor planer.

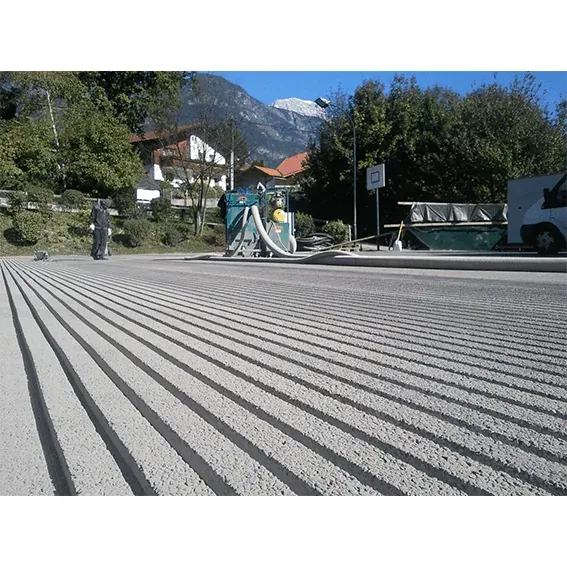

The CT 320® displays tremendous aggressiveness during the removal of concrete, asphalt, coatings and road markings. Milling cutters or diamond tools ensure problem free removal of flexible epoxy coatings and road markings. Specially designed diamond tools for use in “Farmyard Grooving“ result in anti-slip surfaces every time. Variable spacer systems permit any groove pattern.
