MAI®2MIX-MAIA-MOBIL

  • Operating Voltage: 400V/3Ph/N/PE/50Hz
  • Nominal Power: 5.5 kW
  • Fuse: 25 A
  • Feed Capacity: 40-80 l/min
  • Filling Height: 100 mm
  • Dimensions: 190 x 86 x 110 cm
  • Weight: 190 kg

Description

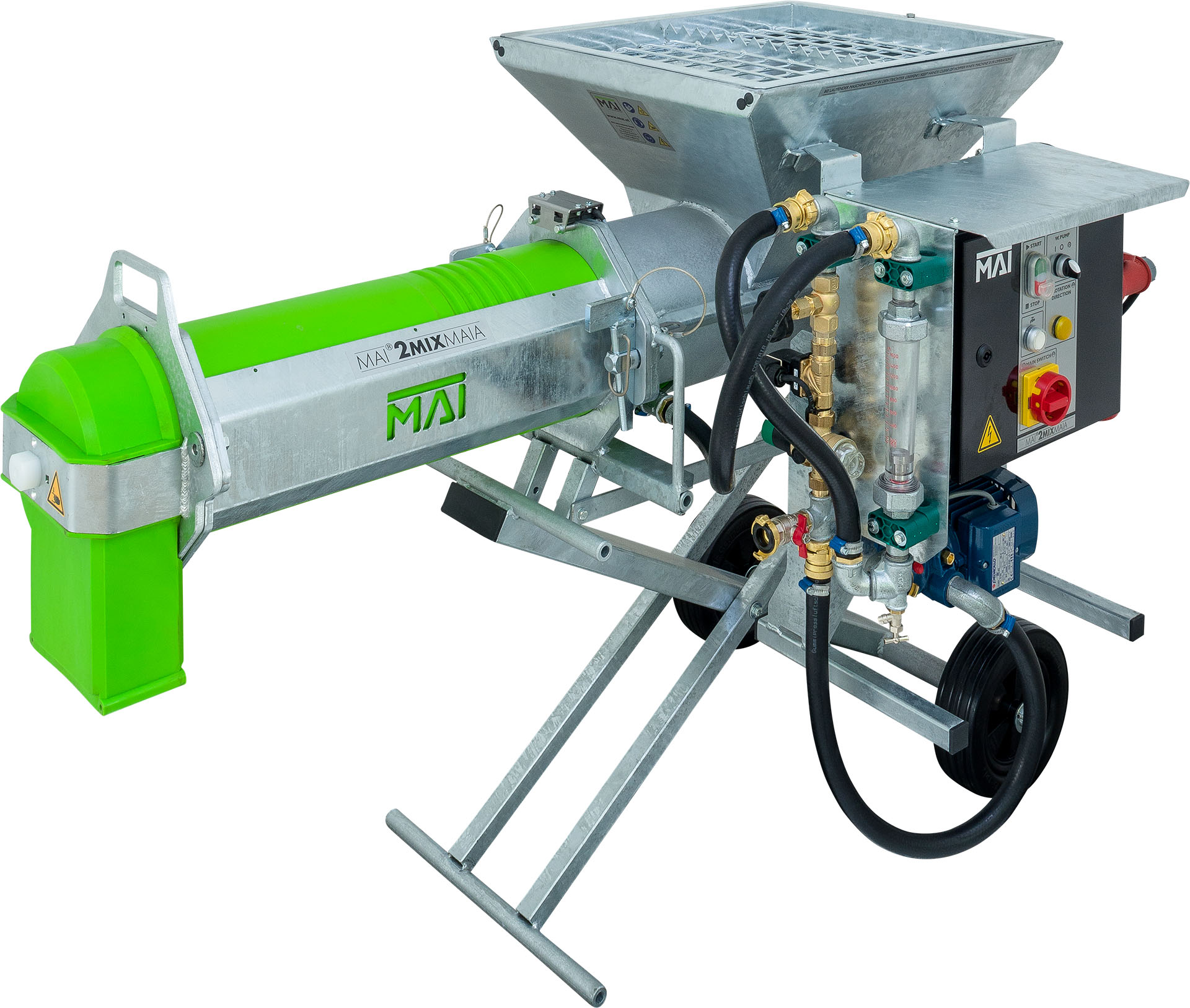

MAI®2MIX-MAIA-MOBIL

MAI® has developed a range of continuous mixers that meet the most exacting requirements on the building site, including the MAI®2MIX-MAIA-MOBIL.

For perfect mixing, quality turn to the latest generation of robust and dismountable horizontal mixers from MAI®. The MAI®2MIX-MAIA-MOBIL offers flexible working with manual loading via a bag possible, adjustable at two different working heights.

Construction projects need reliably consistent concrete mixers and the patented mixing blades of the MAI®2MIX-MAIA-MOBIL guarantee a homogeneous mixing and processing quality (patent no: EP 1 768 771 B1). Add to this the capability for extended mixing time due to the unique position of the water injection system and you have a horizontal mixer that will exceed your expectations.

The MAI®2MIX-MAIA-MOBIL has a maximum mixing capacity of 40 to 80 l/min with a maximum grain size of 6mm (or up to 8mm although this can lead to increased wear of the concrete mixer).

Reduce your maintenance and service costs thanks to the high-quality steel parts and modern MAI®CODUR synthetic components, which guarantee a long service life for this concrete mixer.  MAI® horizontal continuous mixers are built to withstand even the toughest conditions, maintaining continuous operation throughout.

Quick and easy dismantling of the main components, and the self-cleaning

MAI®CODUR mixing zone, save you time and money.

An optional extra is the semiautomatic water booster pump, the operation of which can be carried out via a timer.

Technical Data
