MAI
MAI®2MIX-MAIA-XL
Usually in stock
Operating Voltage: 400V/3Ph/PE/50Hz
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Operating Voltage | 400V/3Ph/PE/50Hz |
|---|---|
| Nominal Power | 5.5 kW |
| Fusing | 25A |
| Mixing Capacity | 120, 140 – 170 l/min |
| Dimensions | 2135 x 460 x 425 cm |
| Weight | 150 kg |
Product description

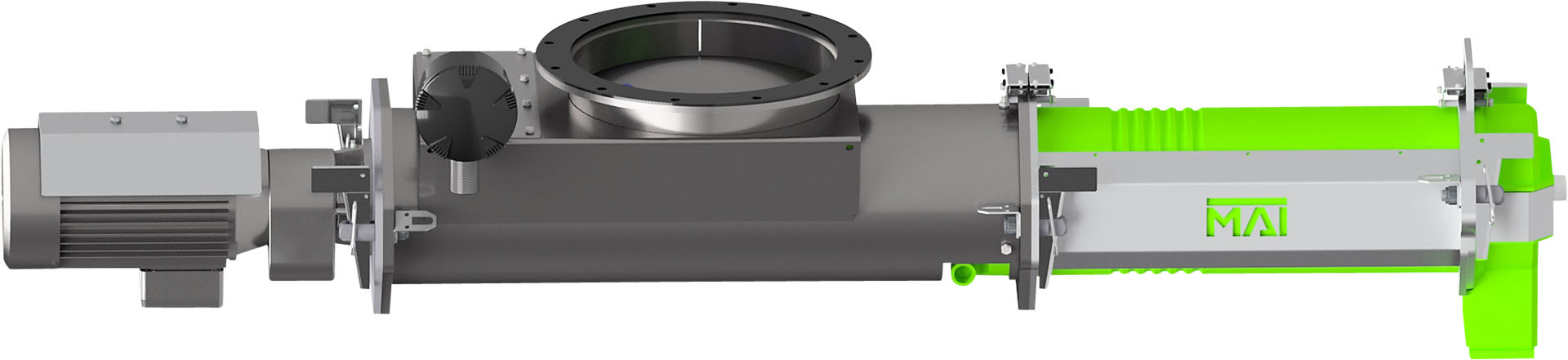

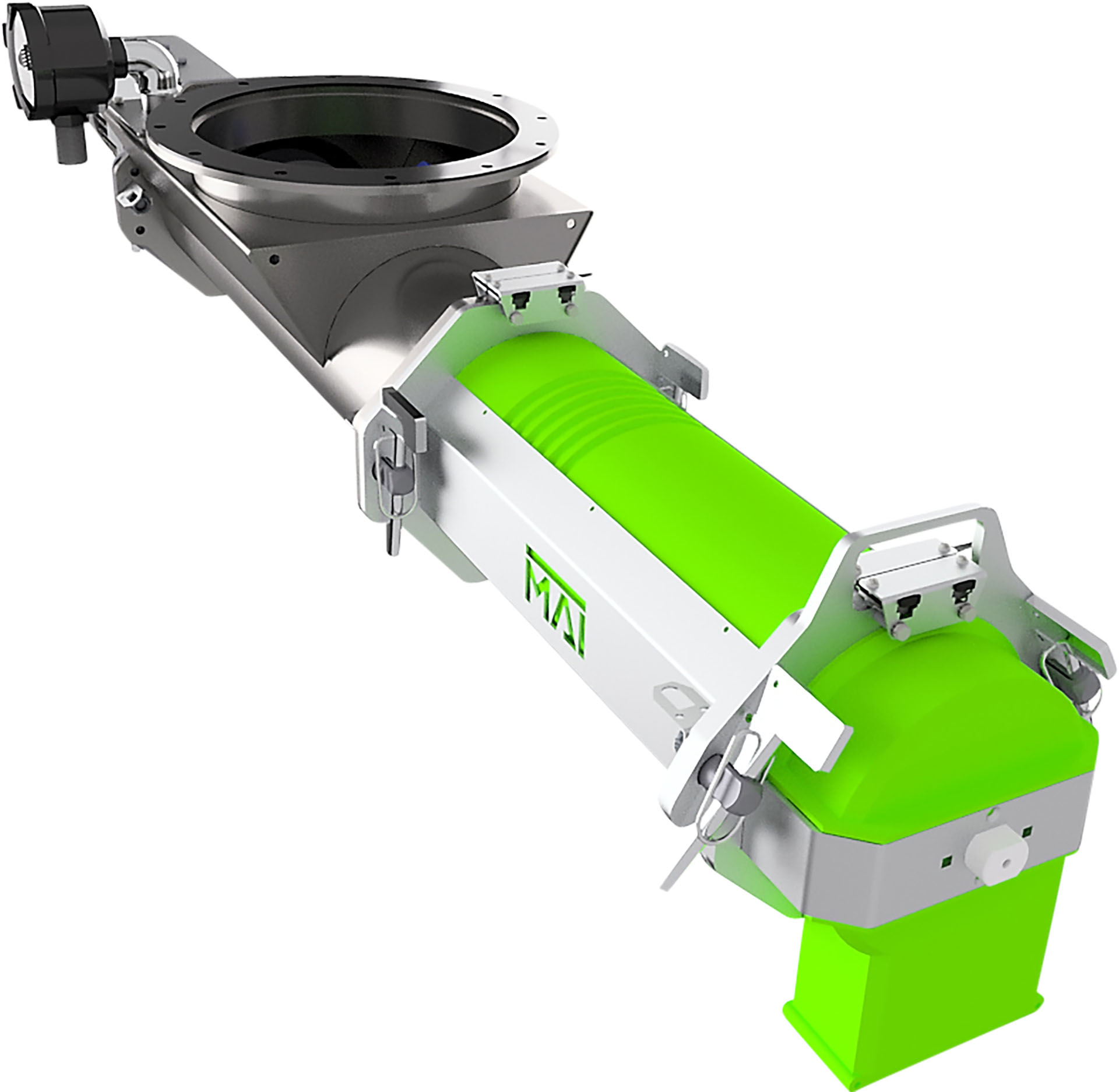

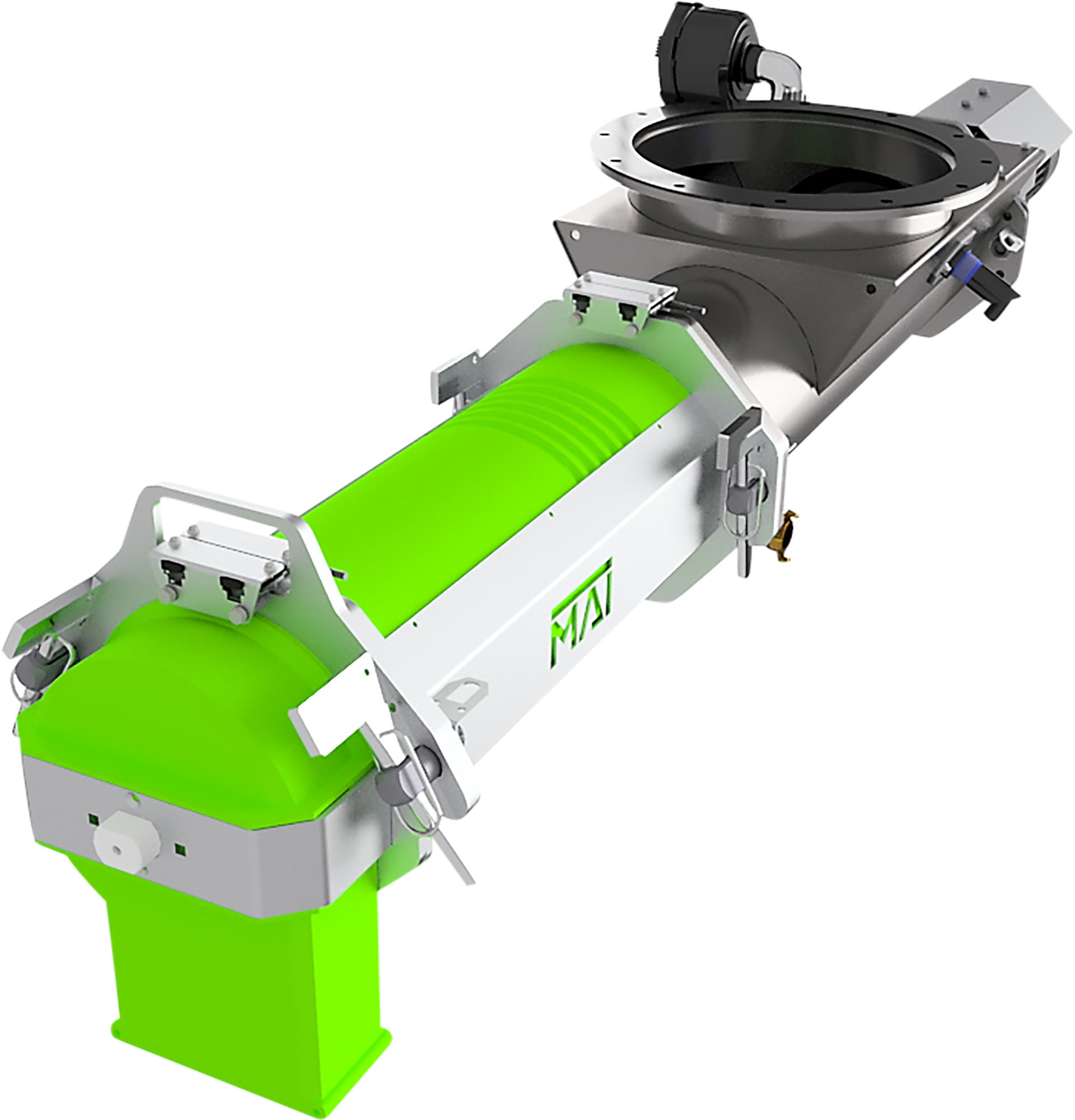

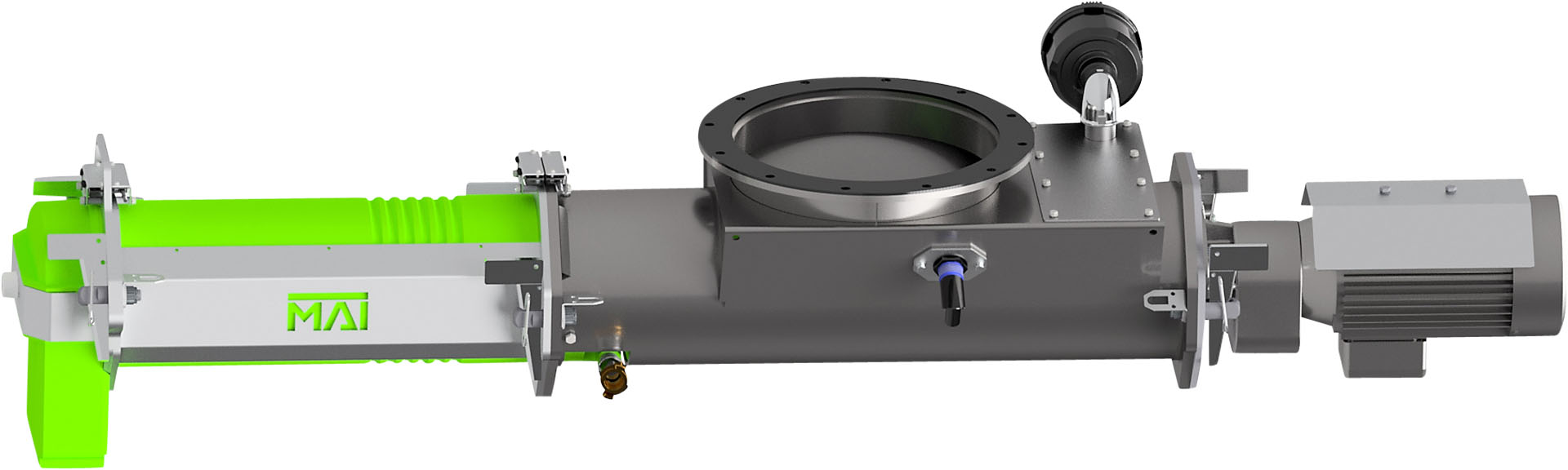

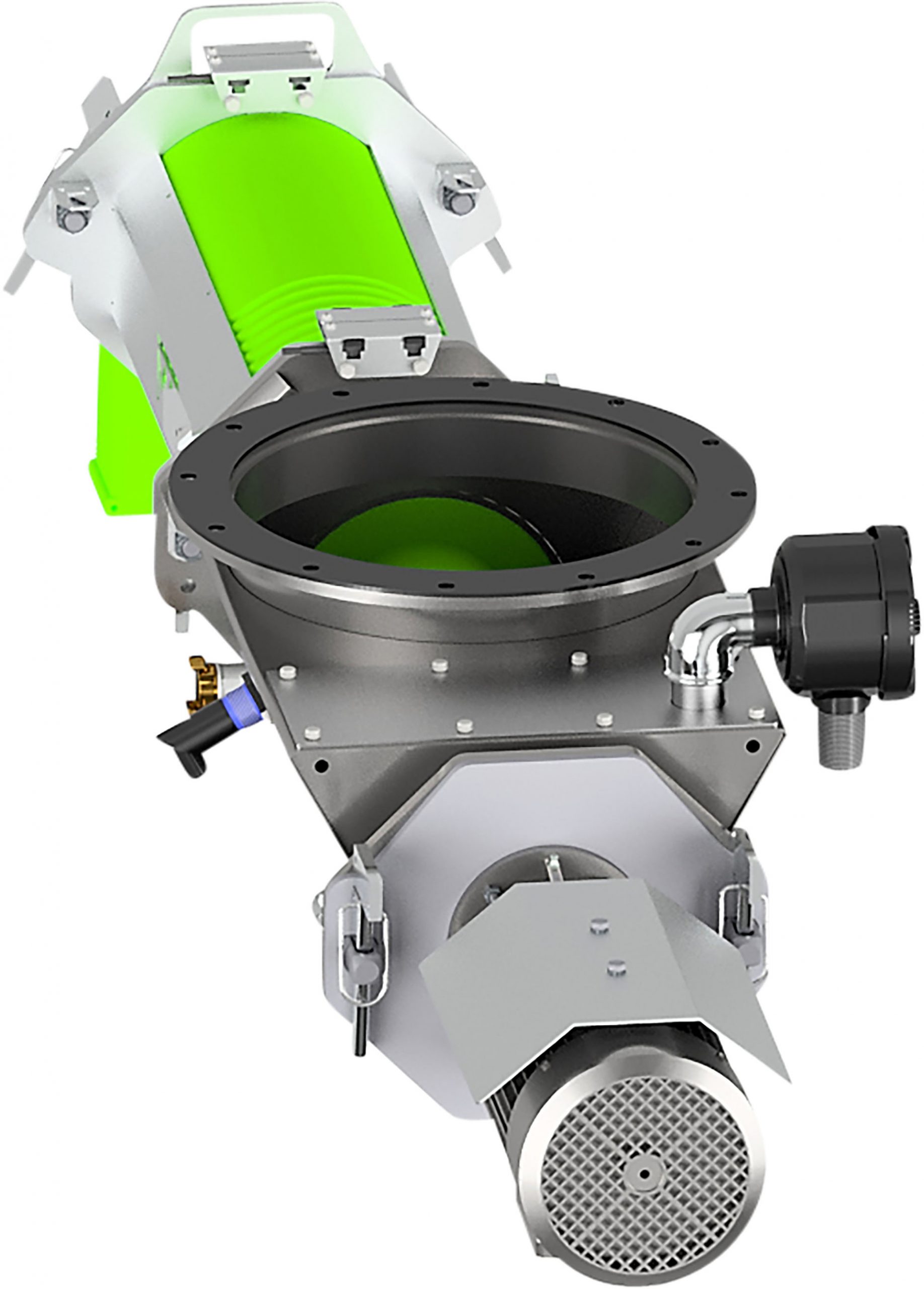

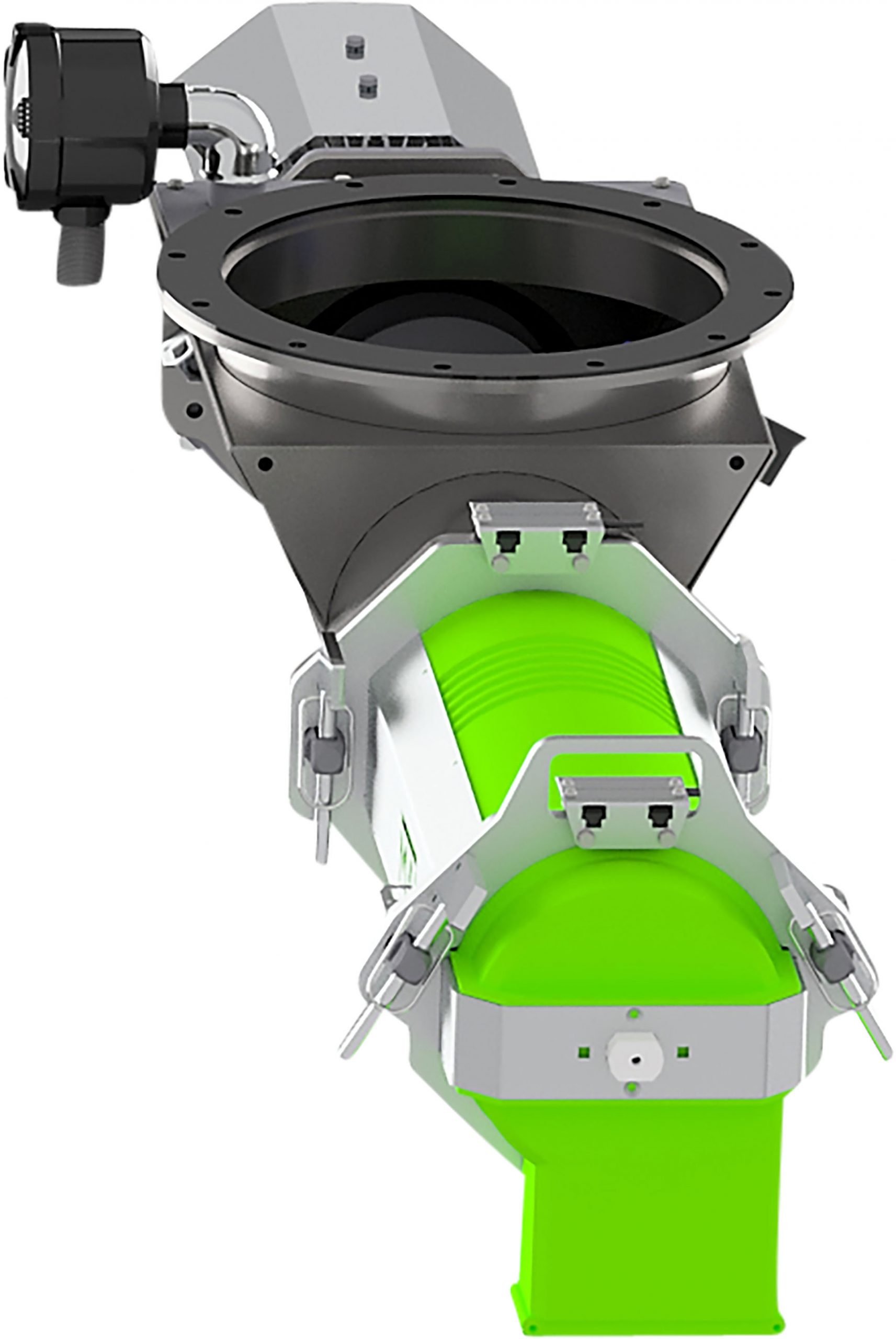

MAI®2MIX-MAIA-XL
The MAI ® 2MIX-MAIA-XLsilo mixer can cope with a maximum mixing capacity of 40 to 150 l/min and maximum grain size of 6 mm or even up to 8mm (although this could lead to increased wear) for a silo flange diameter of 350 mm. In other words, this silo system will be your go-to dry mortar equipment for a huge range of job specifications.

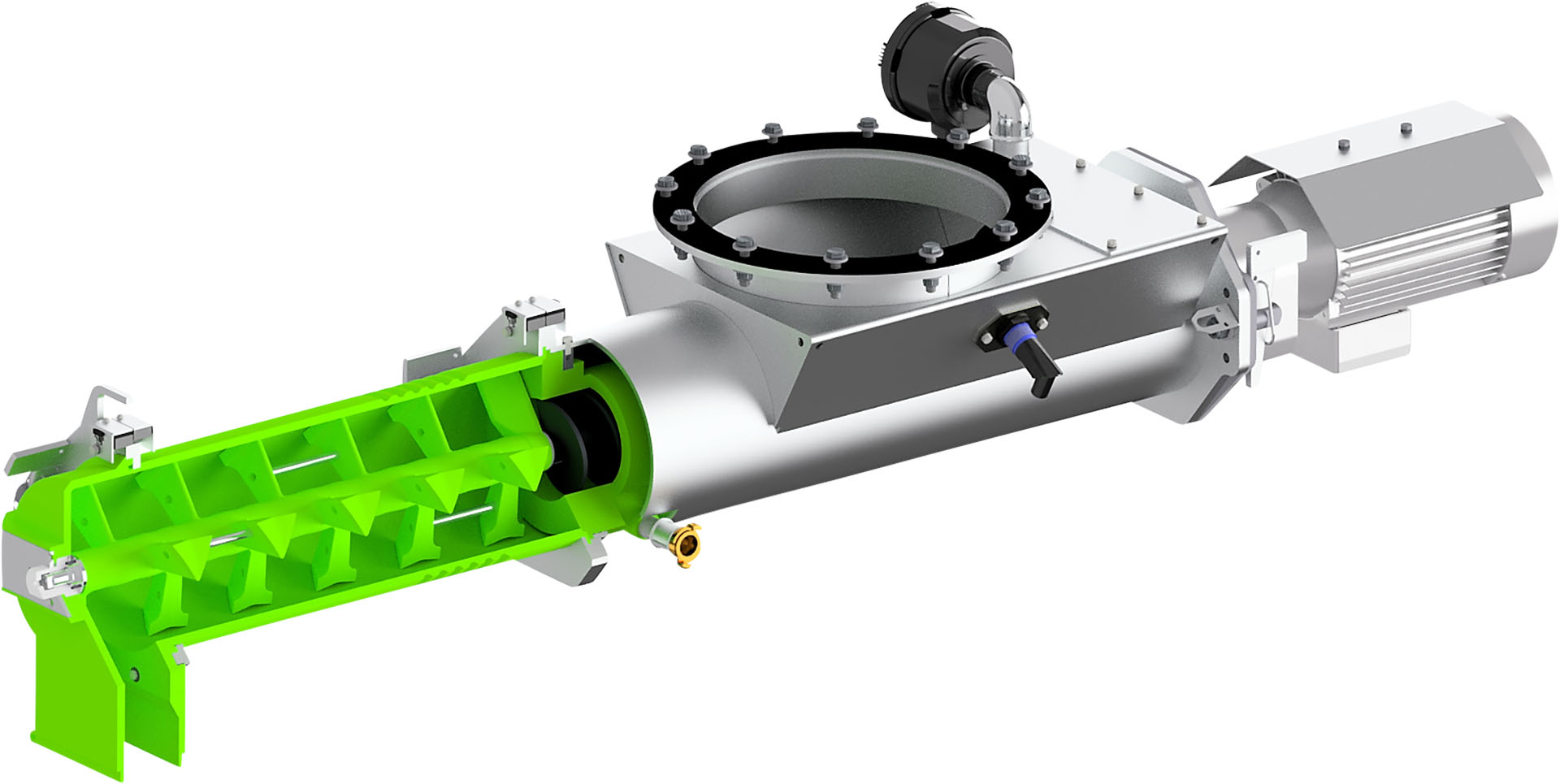

Innovative water injection technology makes this the perfect mixer, for pre-mixed mortar. The unique position and the patented mixing blades (patent No: EP 1 768 771 B1) guarantee homogeneous mixing and the best possible processing quality.
The MAI ® 2MIX-MAIA-XLsilo mixer has been manufactured using highly wear-resistant MAI ® CODUR synthetic materials and hot-dip galvanized components. This is dry mortar equipment that guarantees a long service life and ease of maintenance. All components of the silo mixer can be easily removed for speed cleaning thanks to quick-release connections.
