MAI
MAI®DOS
Usually in stock
Operating Voltage: 400V/3Ph/N/PE/50-60Hz
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Operating Voltage | 400V/3Ph/N/PE/50-60Hz |
|---|---|
| Power Input | 0.55 kW |
| Fusing | 12 A |
| Dosing Pump | 2355 |
| Feed Amount | 56-283 l/h |
| Dimensions | 610 x 430 x 636 mm |
| Weight | 41-58 kg |
Product description

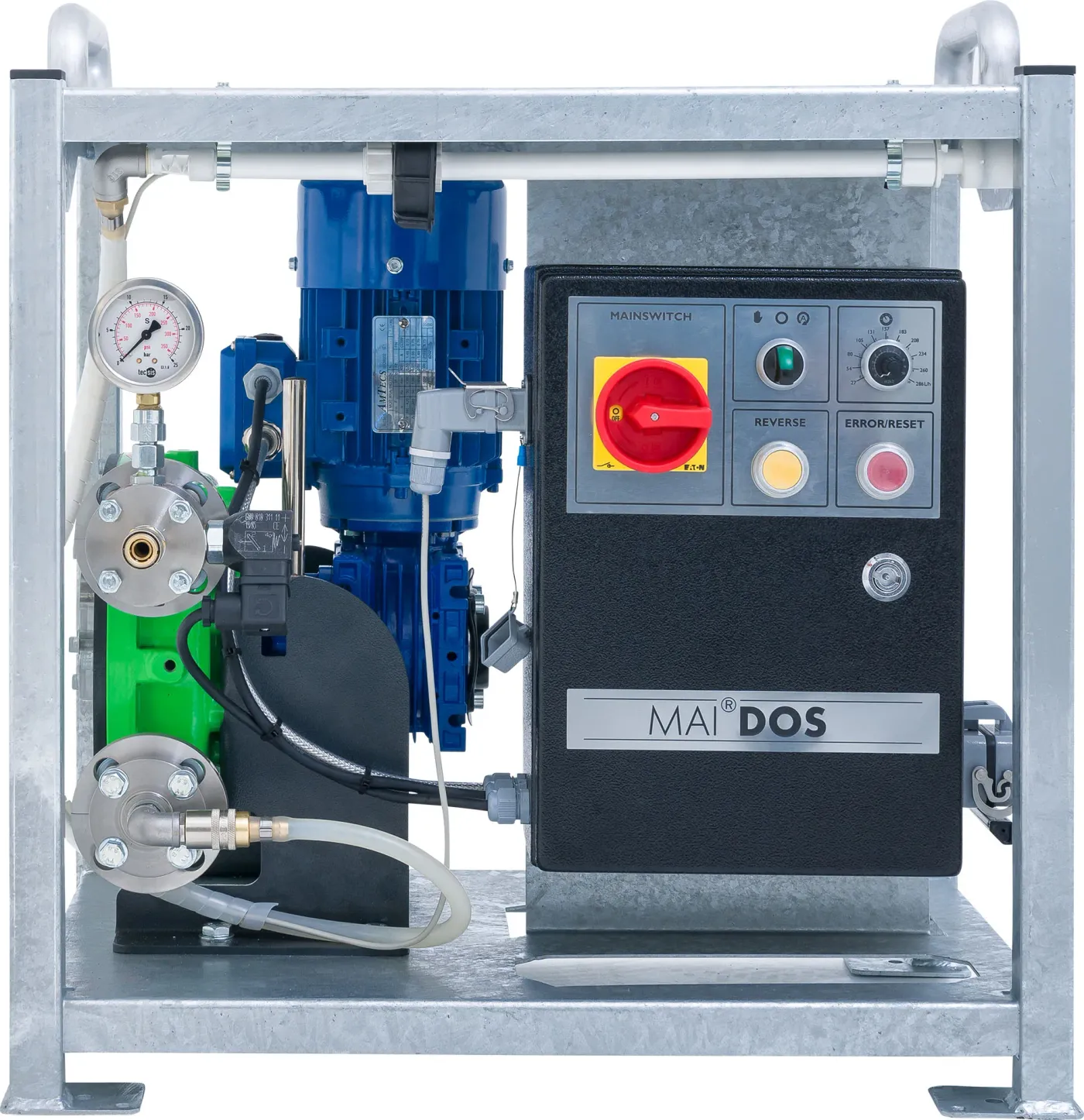

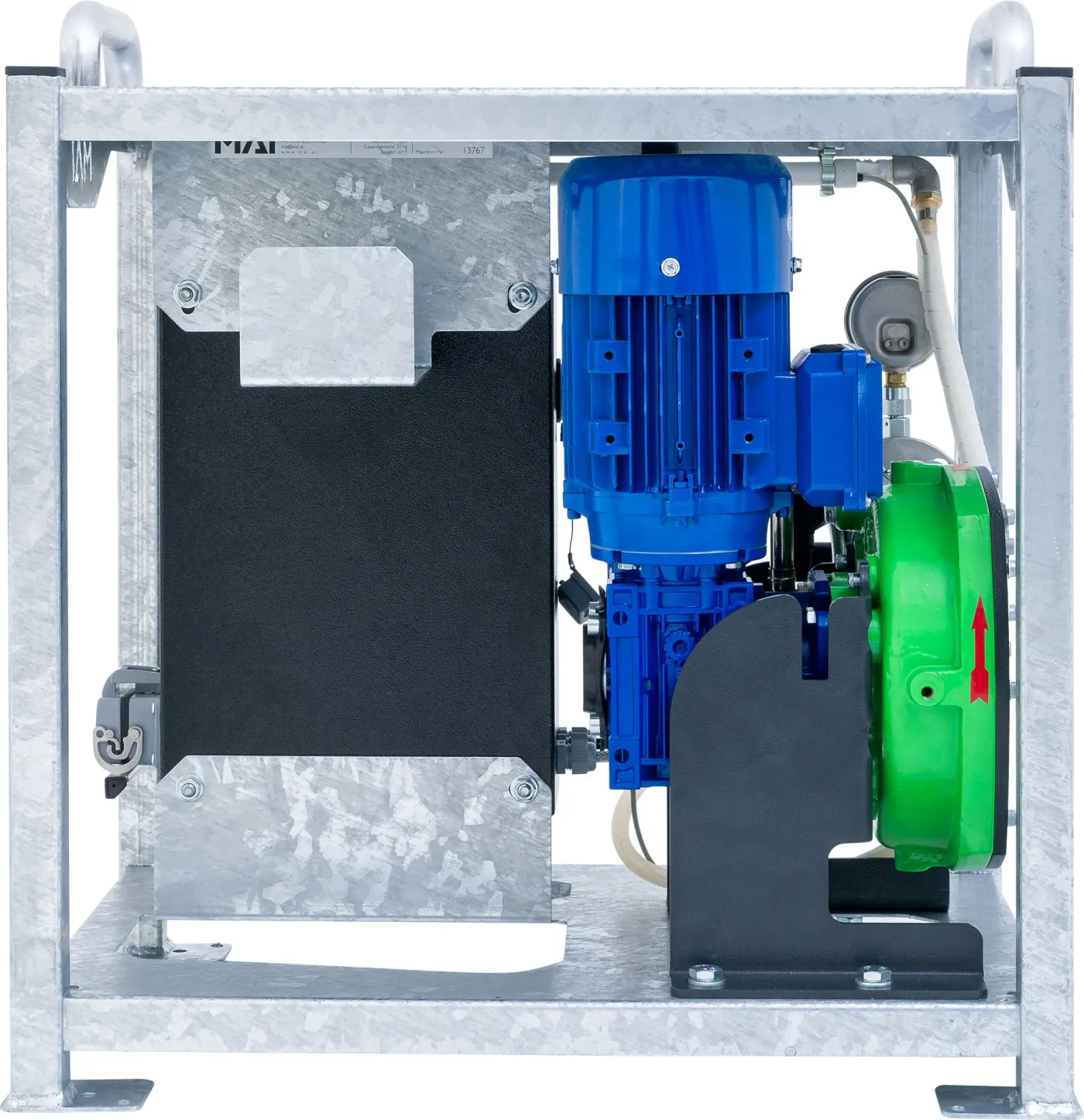

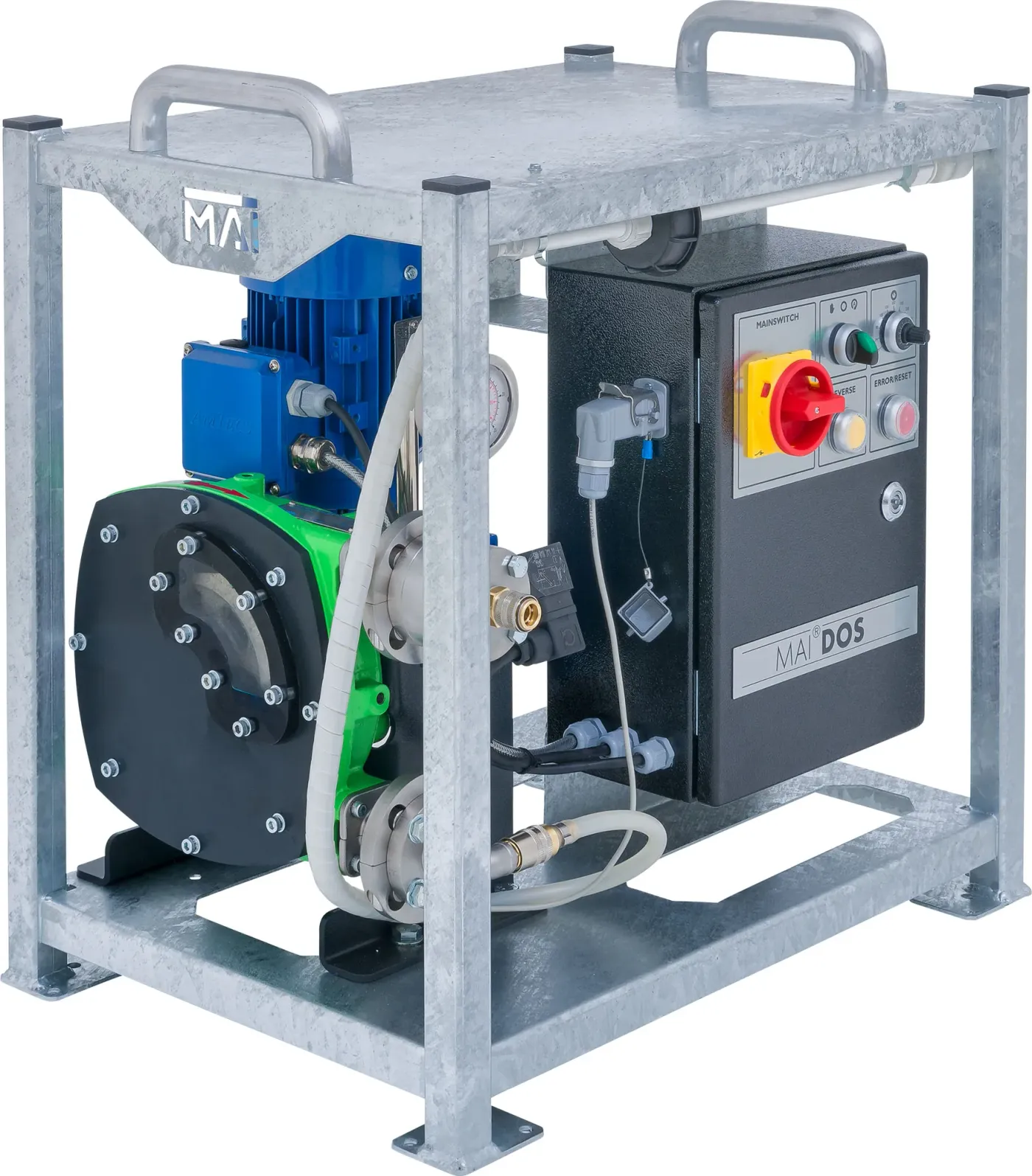

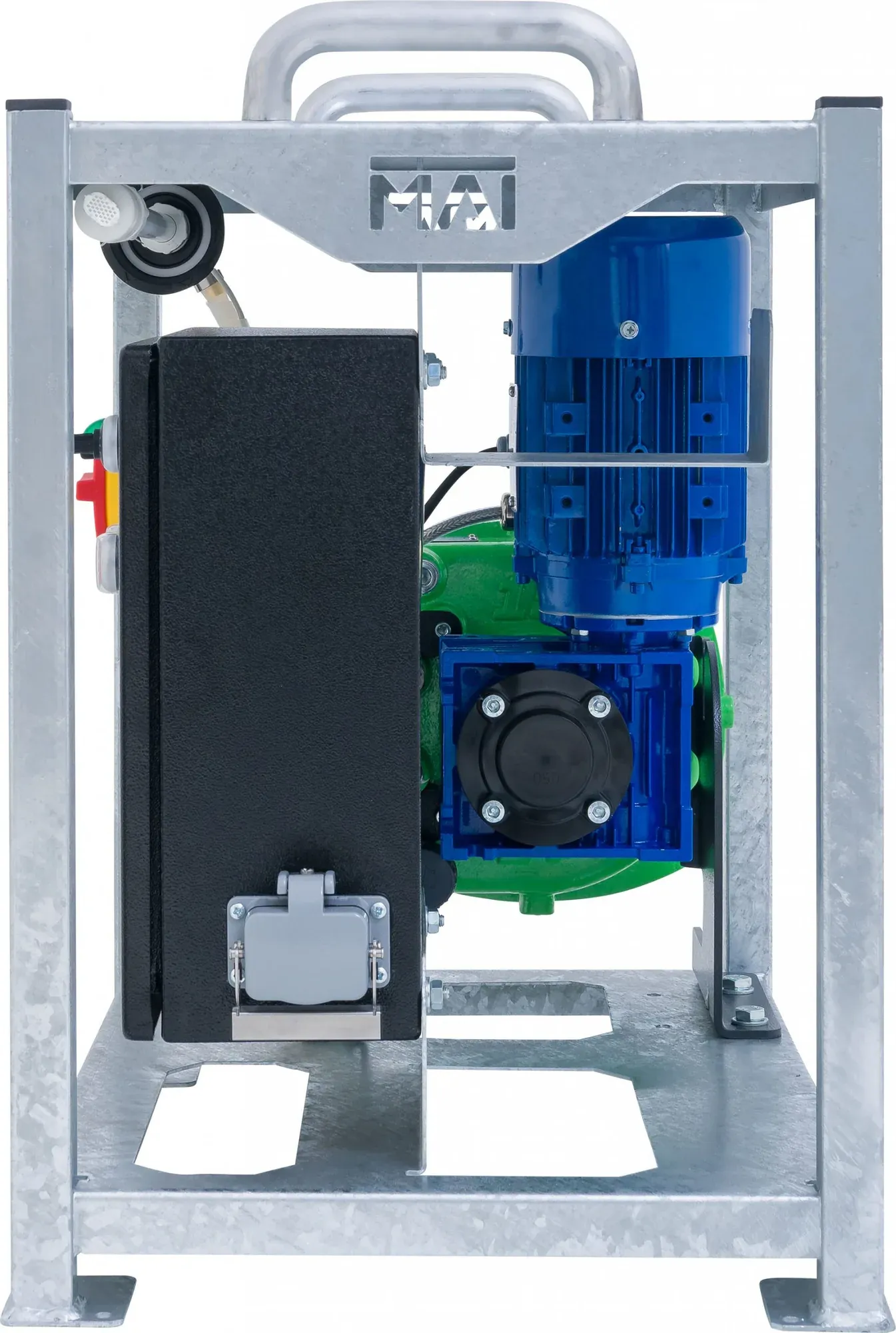

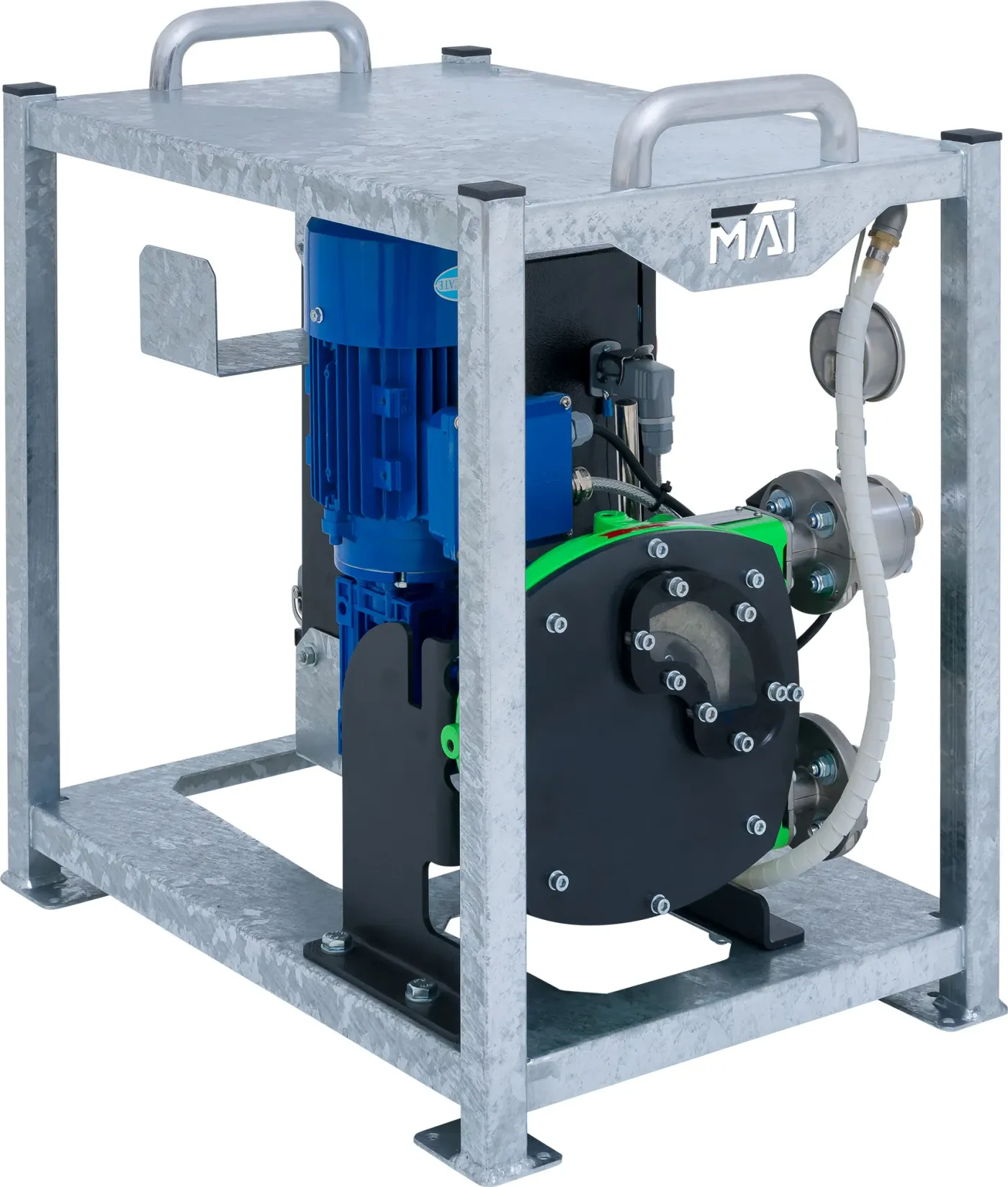

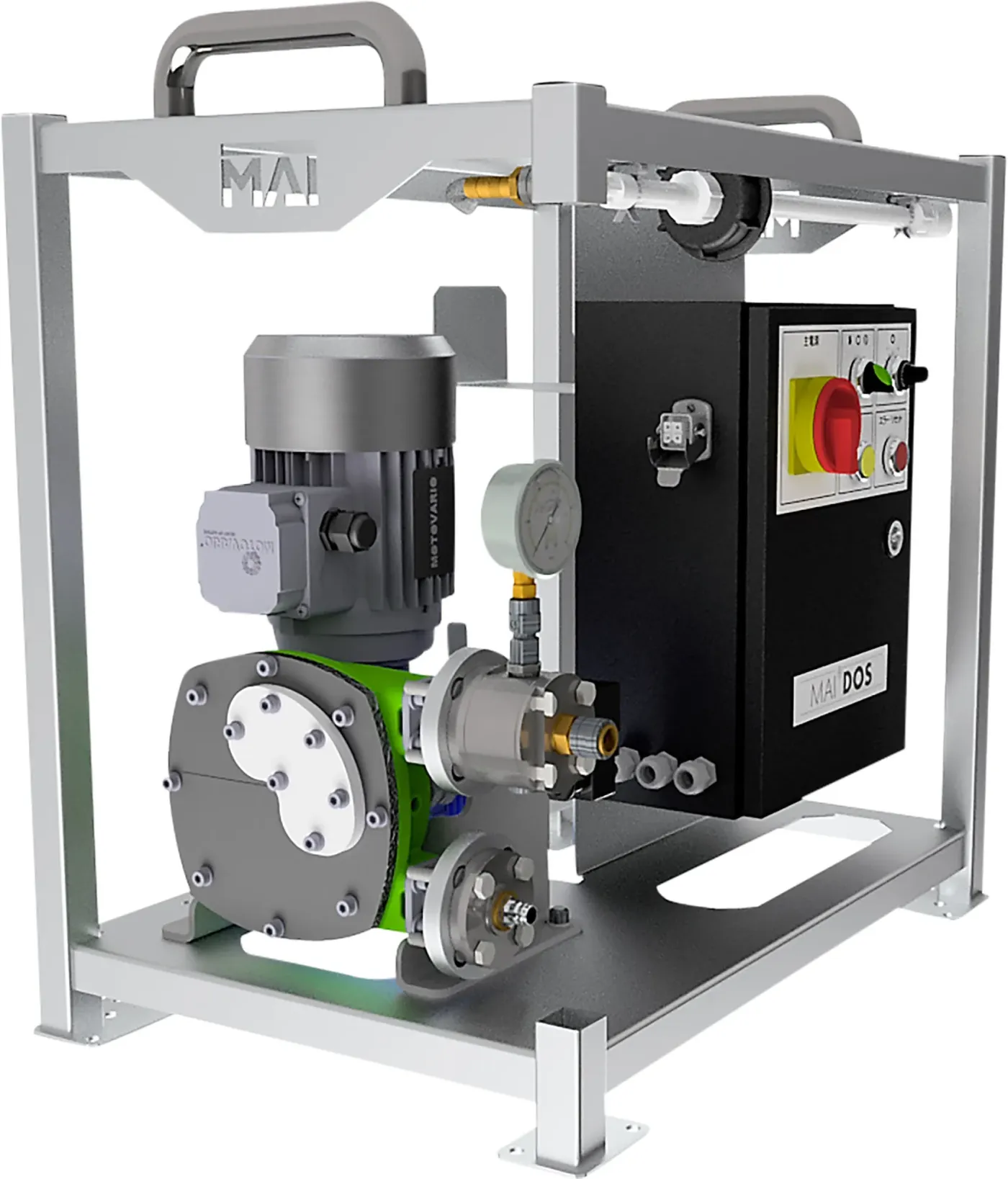

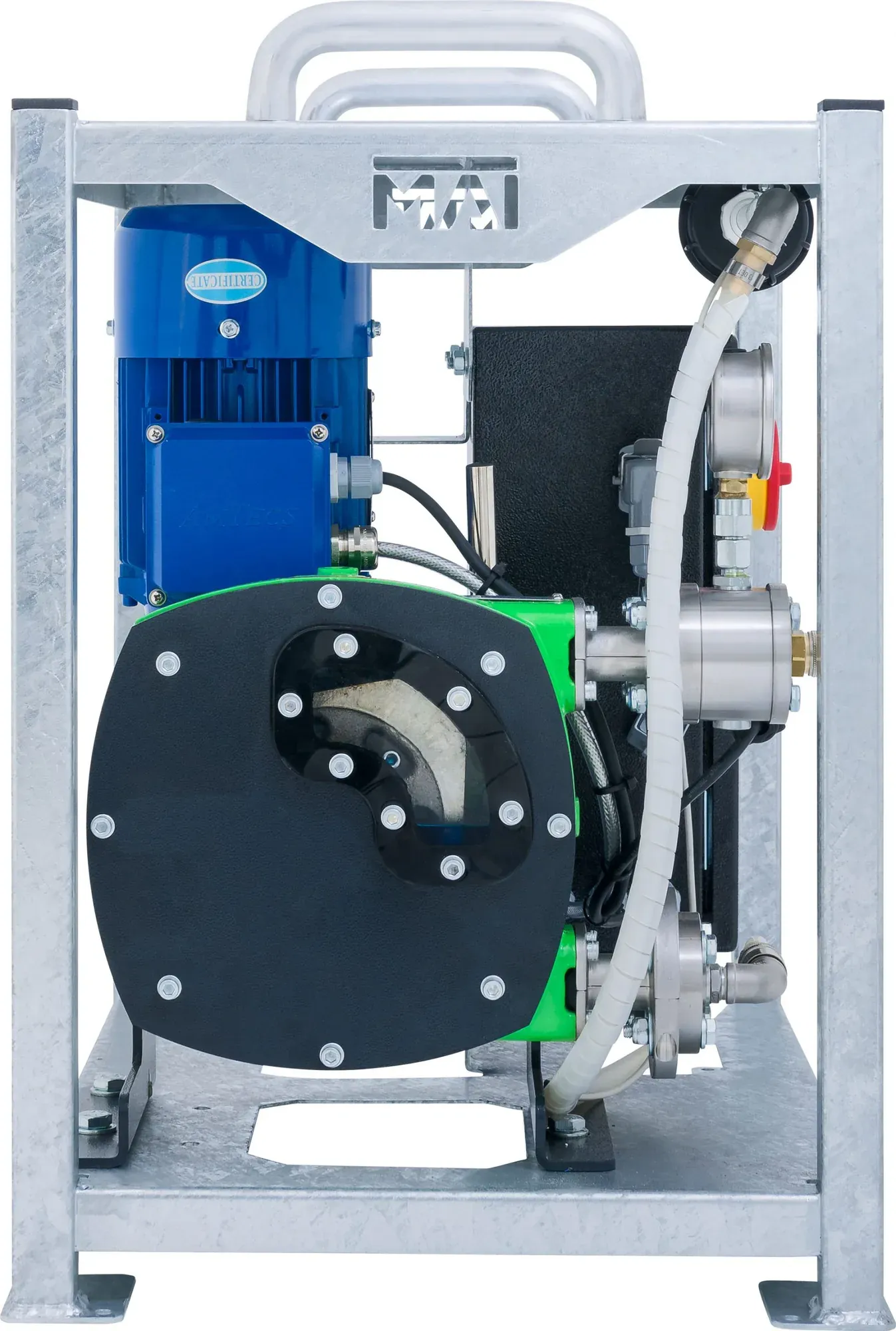

MAI®DOS
The MAI ® DOS portable dosing pump is manufactured with a robust galvanized housing frame, stainless steel components, and corrosion-free hot-dip galvanized materials.
Protection against environmental and operational damage ensures a long service life. MAI ® DOS liquid additives dosing equipment will be a valuable partner on your job site for many years.
The MAI ® DOS universal dosing application system is not just useful for foam concrete production. It also has interfaces for communication with the MAI ® HICOMP, MAI ® MULTIMIX, and MAI ® 440GE mixing pumps.
Wherever liquid additives are needed in the production of modern foam concrete, the MAI ® DOS dosing pump makes life on the job site brilliantly simple. The MAI ® DOS can dose foam additives or other chemical additives at between 5 l/h and 160 l/h up to a maximum 12bar pressure. Dosage is continuously adjustable via the potentiometer.
