MAI®HICOMP-FC
Usually in stock
System Power: 17 kW
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| System Power | 17 kW |
|---|---|
| Power Input | 400 V/3Ph/PE/50Hz |
| Fuse | 32 A |
| Mixing & Pump Capacity | 6-8 mm |
| Hopper Capacity | 72 Litre |
Product description

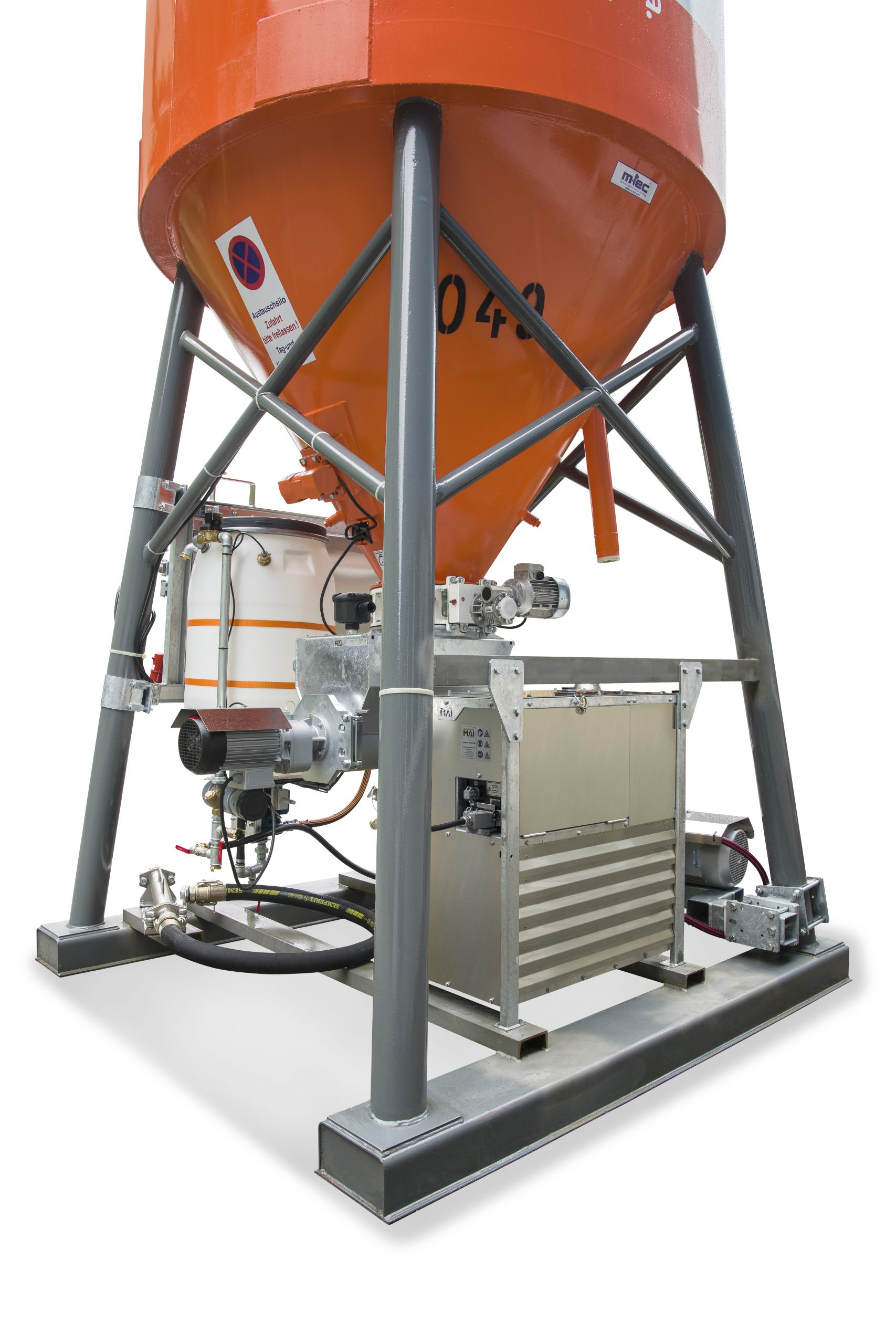

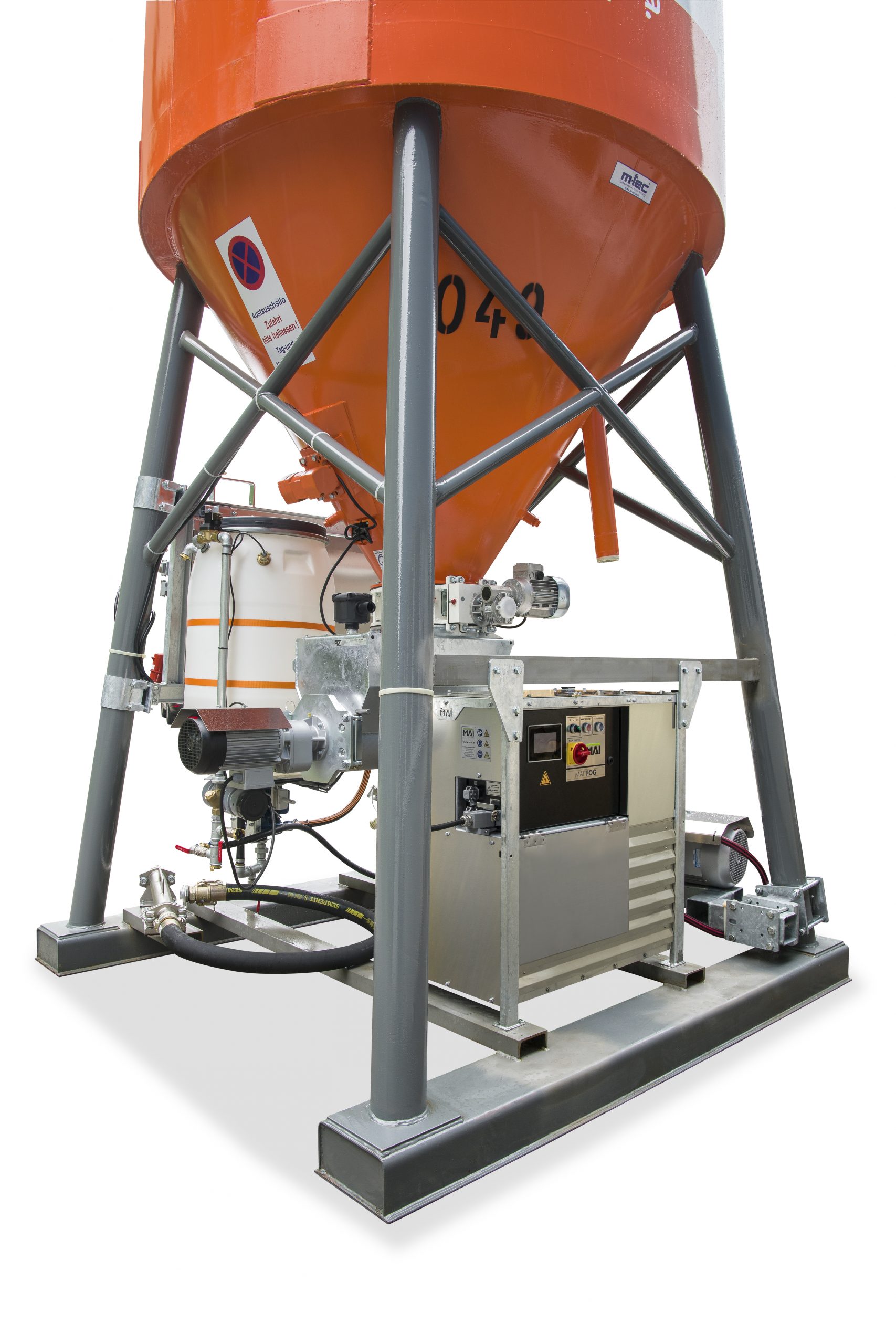

MAI®HICOMP-FC
The MAI ® HICOMP-FC is similar to the popular MAI ® HICOMP but with special equipment included for the production of cellular foam concrete. This includes the MAI ® FOG silo mounted foam generator and the static mixer as well as the special worm pump for lightweight foam and optionally available auxiliary units such as the dosing pump MAI ® DOS.

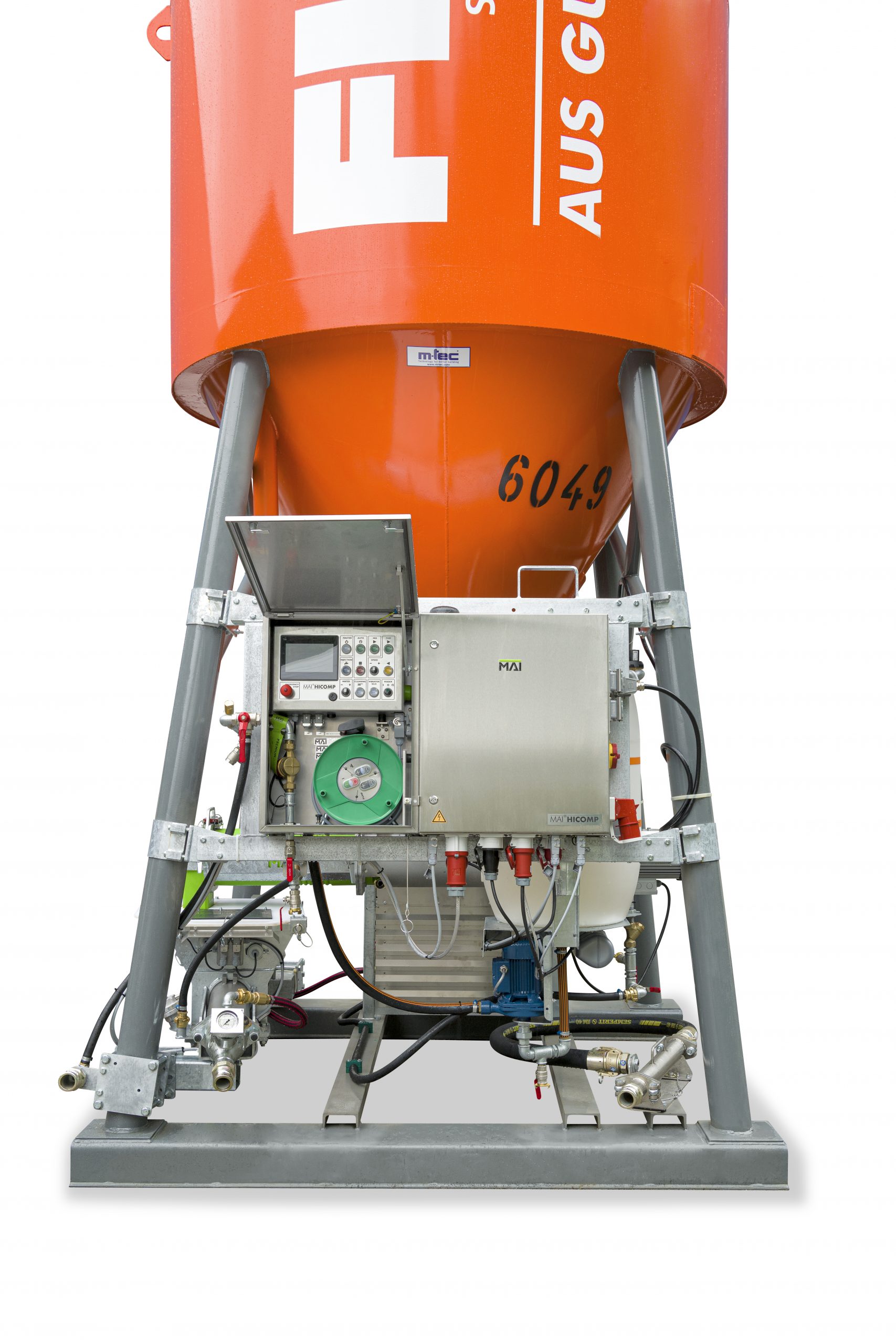

The system includes interfaces for the control of these external devices, which are controllable from the MAI ® HICOMP-FC unit or via the optional cable or radio remote control.
The MAI ® HICOMP-FC can also be easily used as a standard MAI ® HICOMP when you need a regular mobile mortar system rather than a foam concrete system.

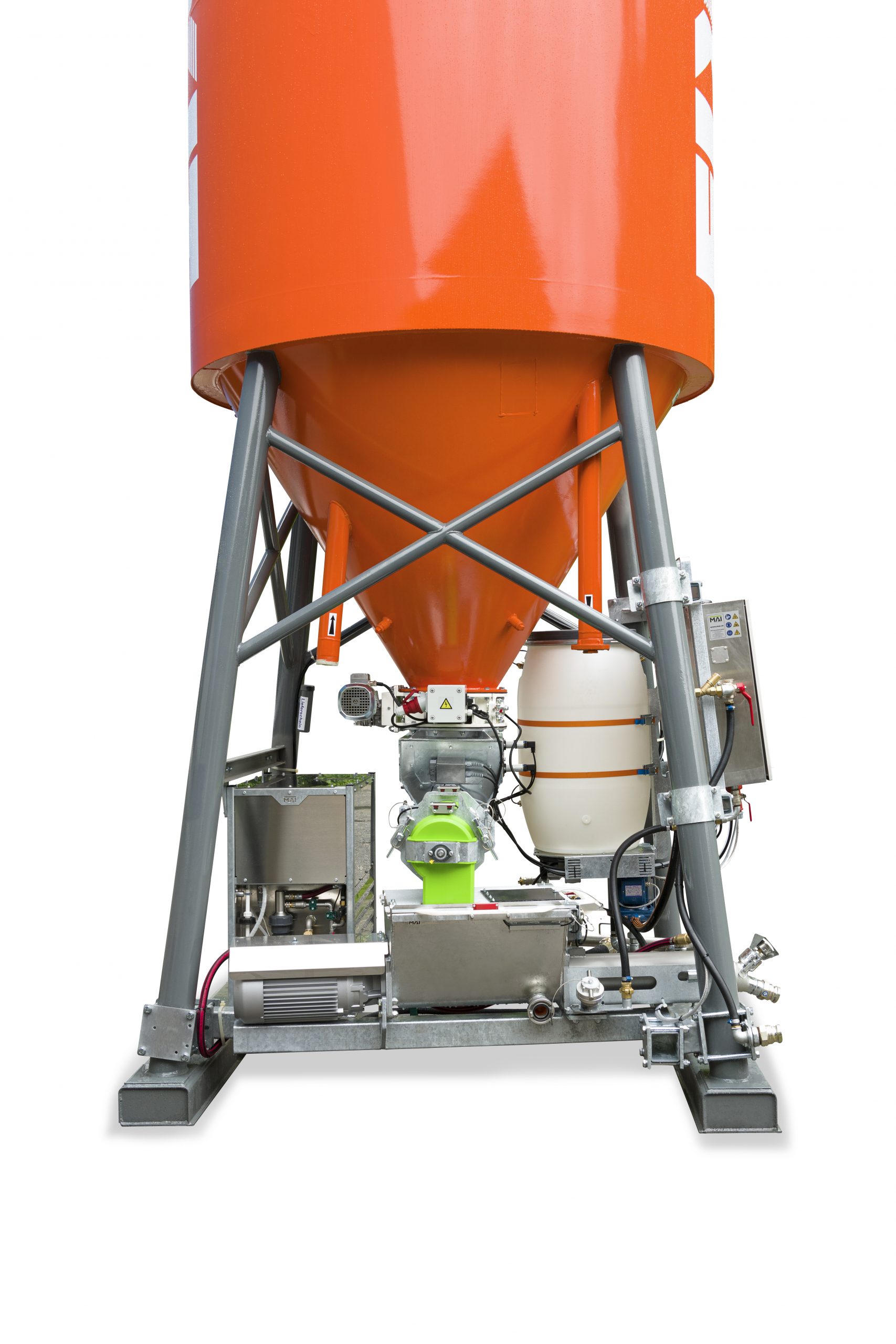

A lightweight porous concrete pump screwed onto the silo, the MAI ® HICOMP-FC under silo mixing pump maintains operation even through fluctuations in the power supply. Use the remote control to easily adjust the pumping capacity of the MAI ® HICOMP-FC.
Achieve consistent cellular foam concrete quantities of between 9 and 24 cubic meters per hour (with a minimum mortar hose width of 50mm, at a distance of up to a maximum of 100m) for a silo diameter of 350 mm.
