MAI®MULTI MIX FC
Usually in stock
Operating Voltage: 400V/3Ph/N/PE/50Hz
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Operating Voltage | 400V/3Ph/N/PE/50Hz |
|---|---|
| Power Input | 10 kW |
| Fusing | 32 A |
| Water Pressure | min. 2 bar (when a machine is in operation) |
| Hopper Capacity | 45 Litre |
| Dimensions | 2010 x 750 x 1030 mm |
| Weight | 360 kg |
Product description

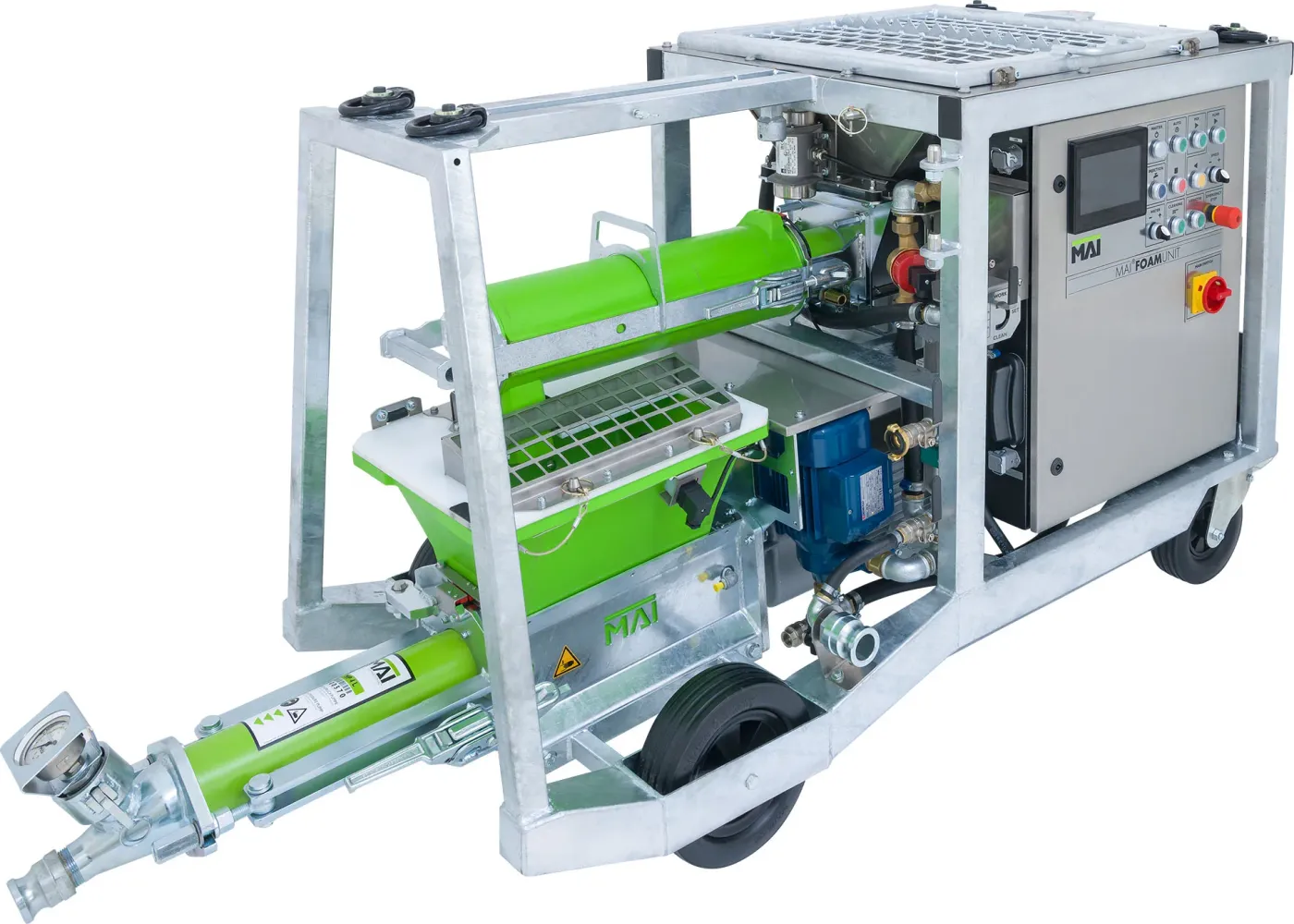

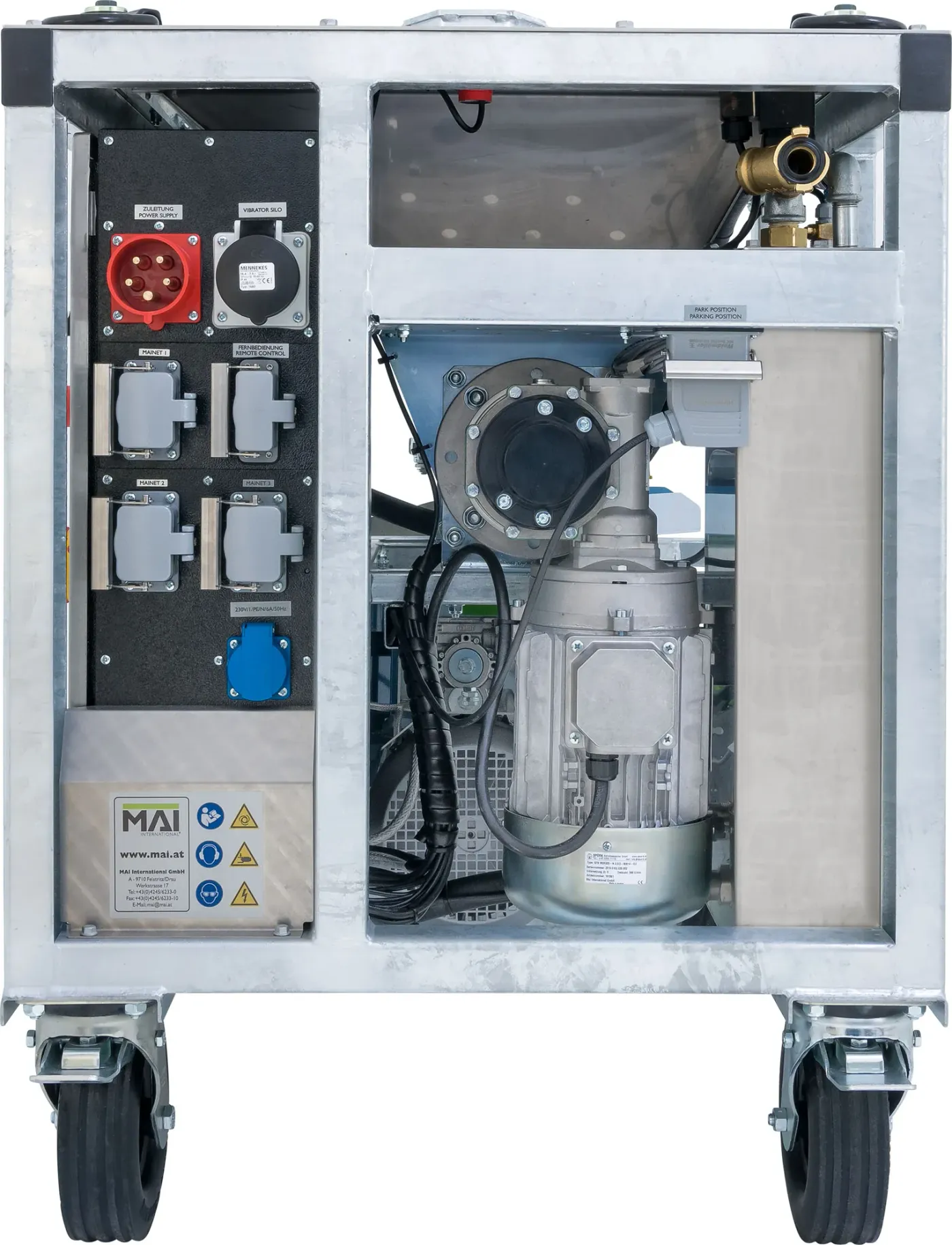

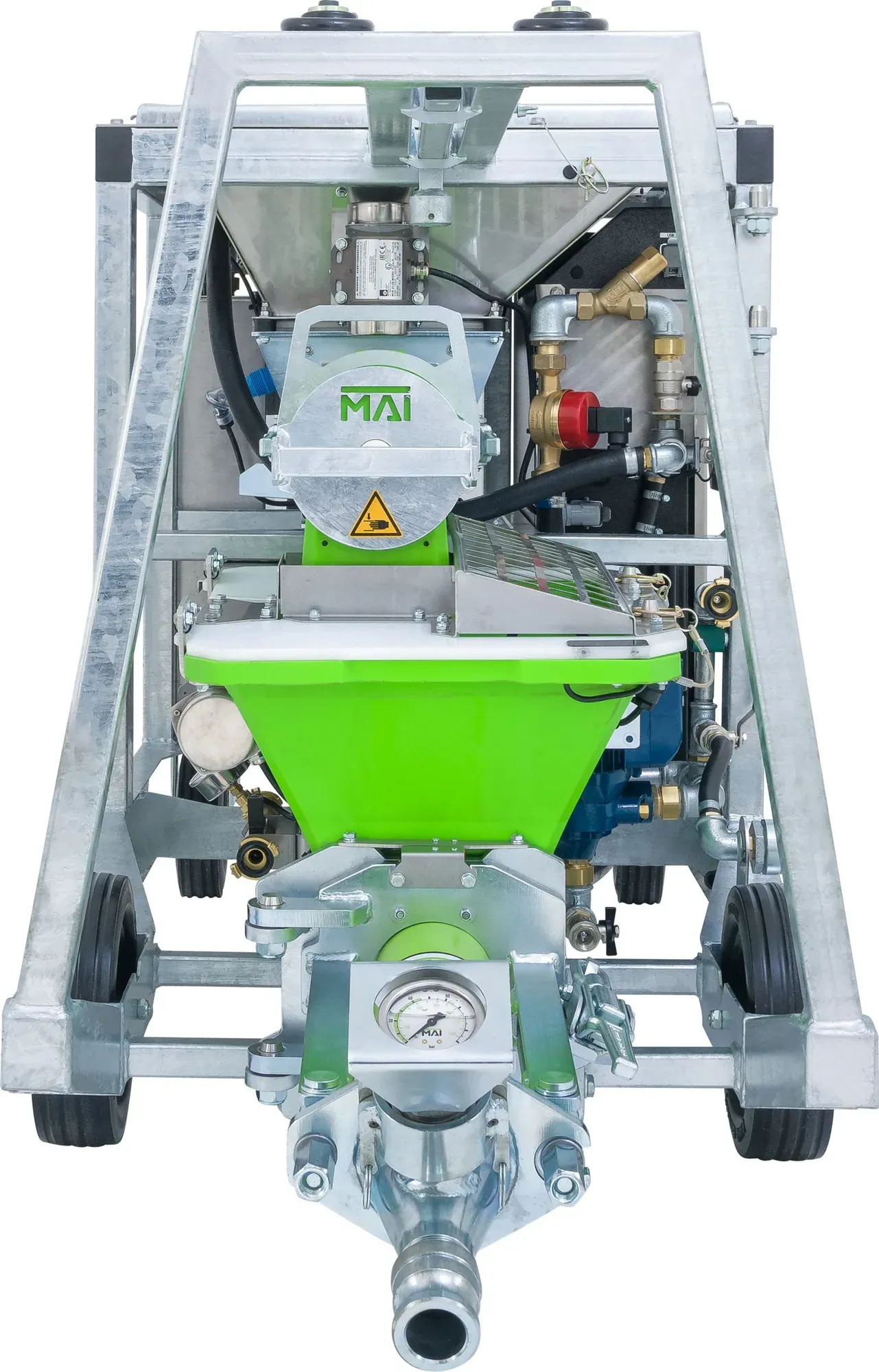

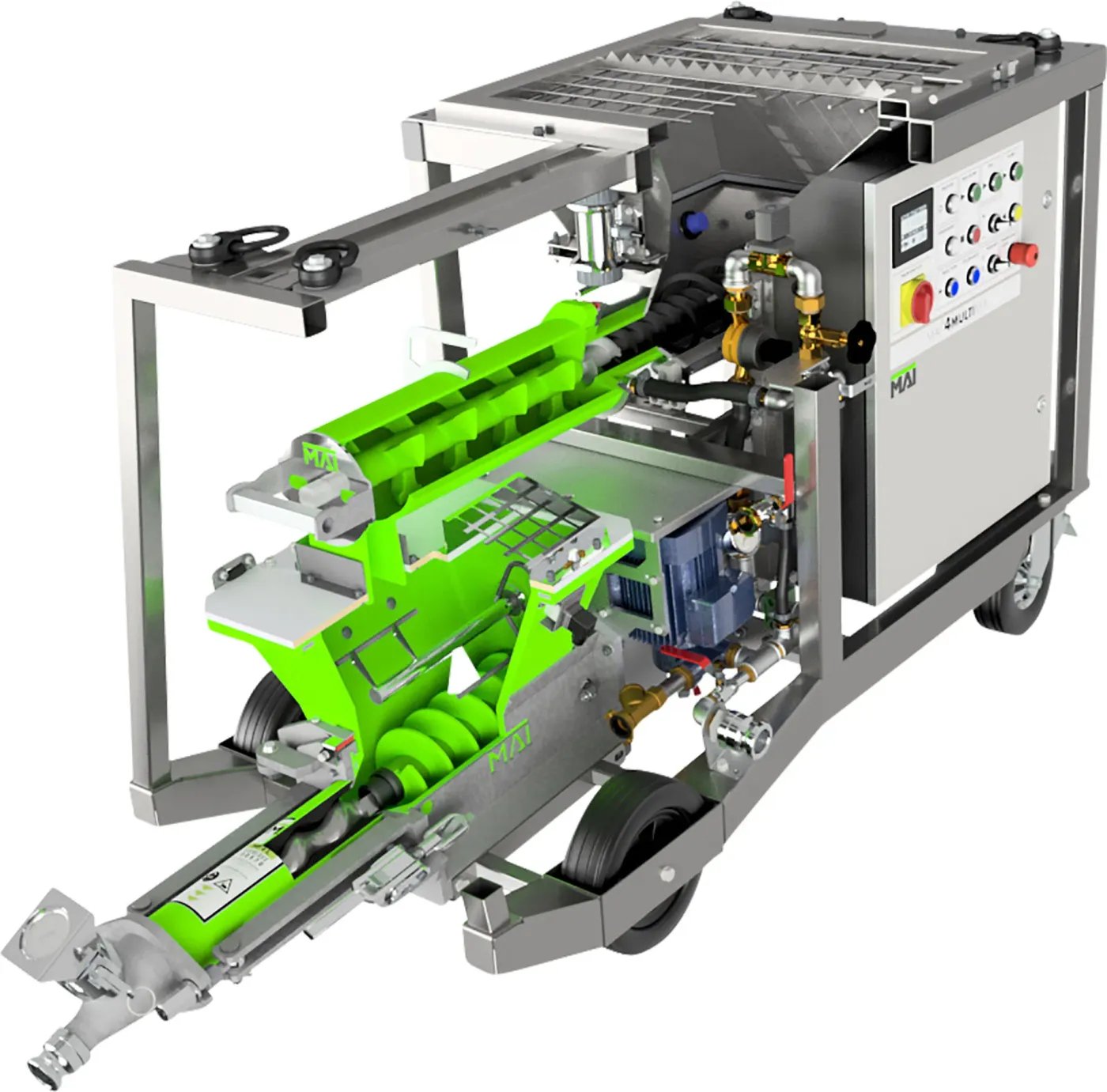

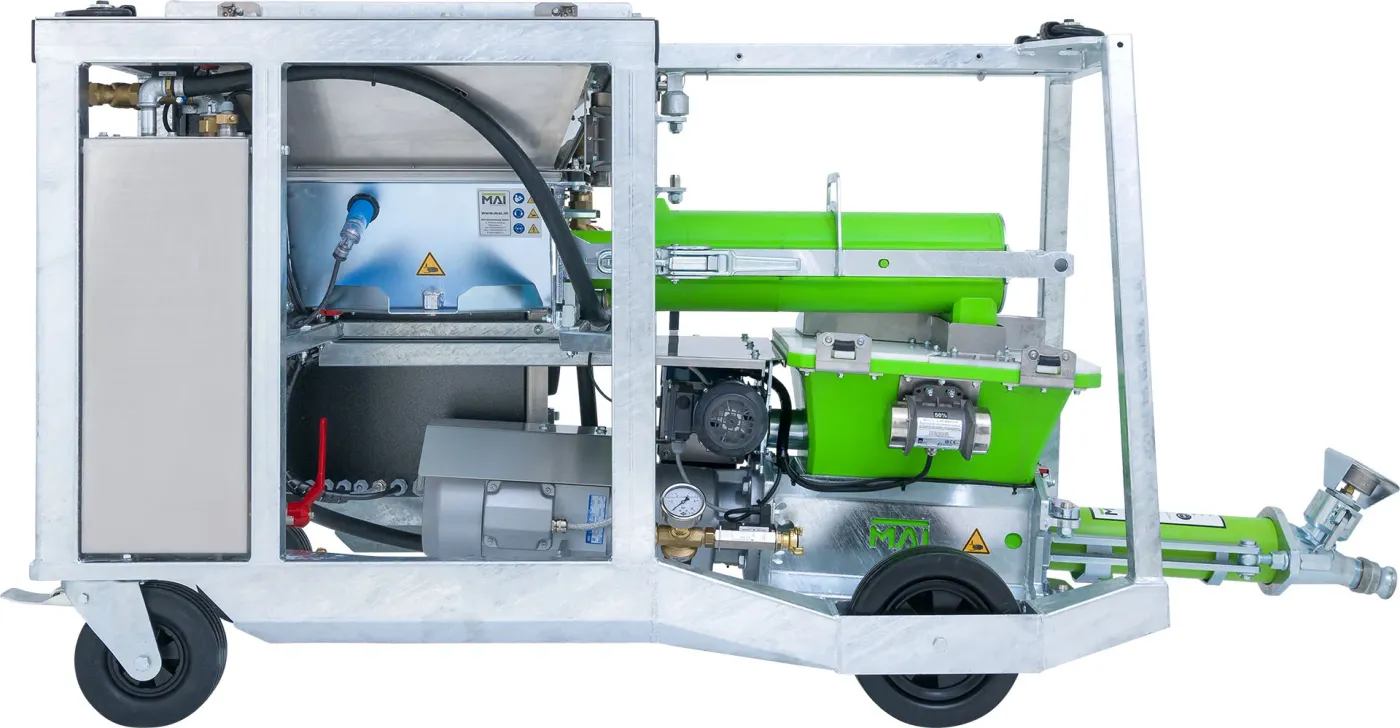

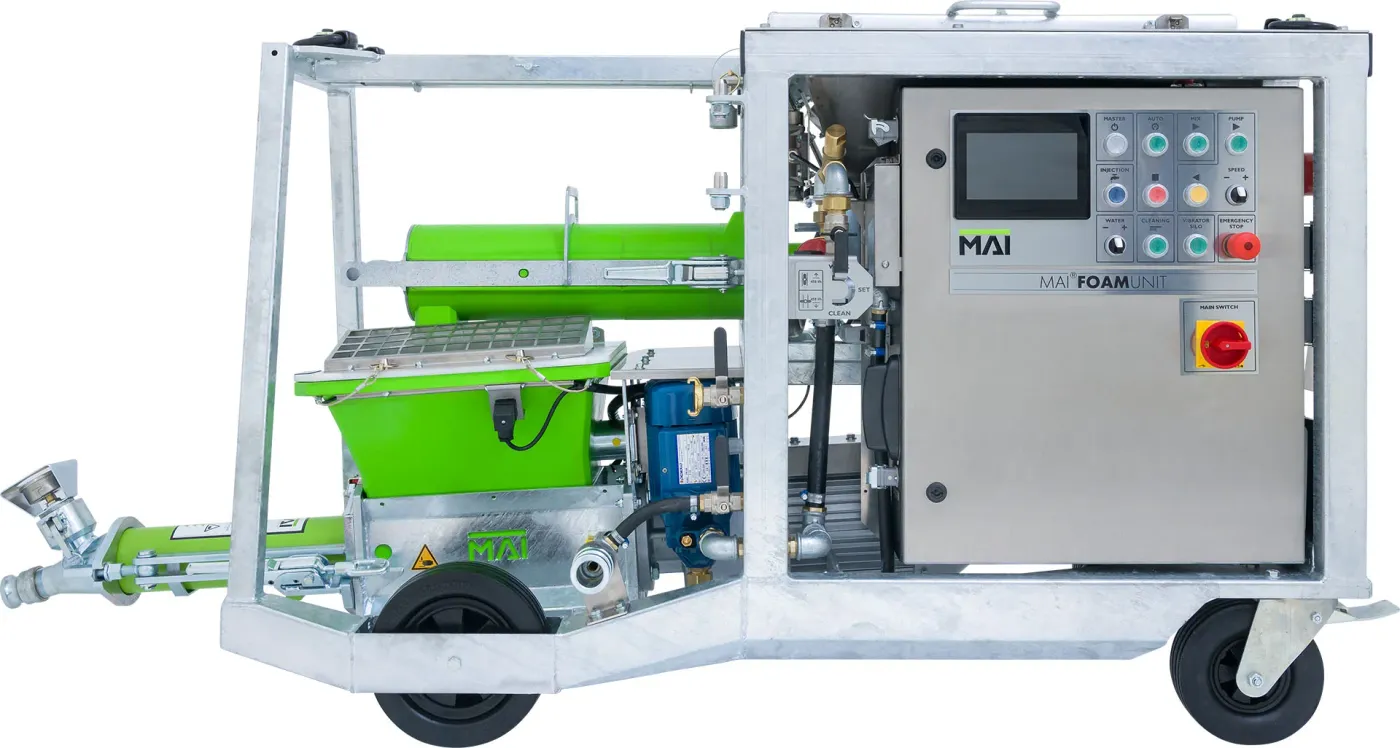

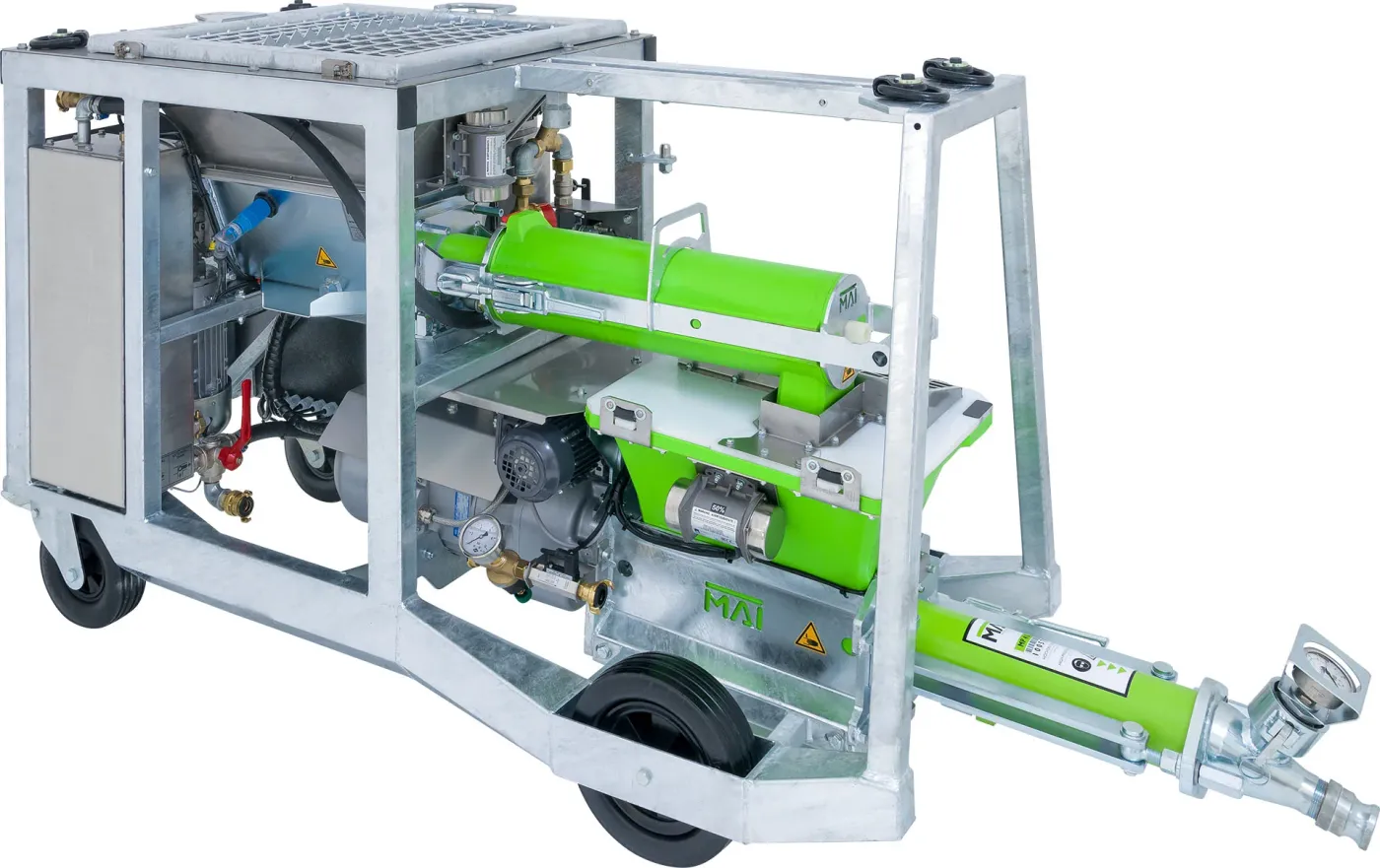

MAI®MULTI MIX FC
The MAI ® MULTI MIX FC special purpose foam mortar mixing pump sets new standards in process security thanks to cutting edge MAI ® technology. It is innovative water and dry material management mobile mixing pump for lightweight porous concrete that does not allow the slightest fluctuations in material consistency. Various additives can be added during mixing without any change inconsistency, even with pressure resistance in the mortar hose.
The MAI ® MULTI MIX FC is able to mix foam concrete between 3 and 15 cubic meters per hour (with a nominal minimum mortar hose width of 50mm and a maximum distance of 80m).
Simple operation and high process reliability are a given with MAI ® equipment for fully automated production of lightweight concrete. The MAI ® MULTI MIX FC features a constant display, monitoring, and documentation of operating status in different languages. This system enables optical control of the mixing quality in the wet foam mortar area, which makes adjustment possible at any stage in the process.
