Ridgid

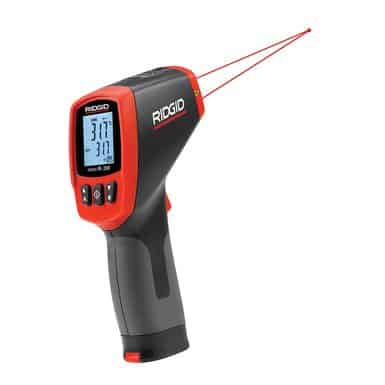

RIDGID Micro IR-200 Infrared Thermometer
Usually in stock
The micro IR-200 uses optics to sense emitted, reflected and transmitted energy, which is collected and focused onto a detector. The unit’s electronics translate the information into a temperature reading, which is displayed. Lasers are used to assist in aiming
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Temperature Range | -58° to 2192°F (-50° to 1200°C) |
|---|---|
| Distance To Spot Ratio | 30 to 1 |
| Response Time | <150ms |
| Emissivity | Adjustable, 0.10 - 1.00 |
| Temperature Display | Current Temperature, MAX Temperature |
| Measurement Units | Fahrenheit, Celsius |
| Power source | Battery (1 x “9V”) Included |
Product description

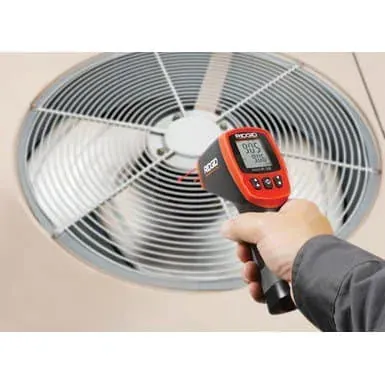

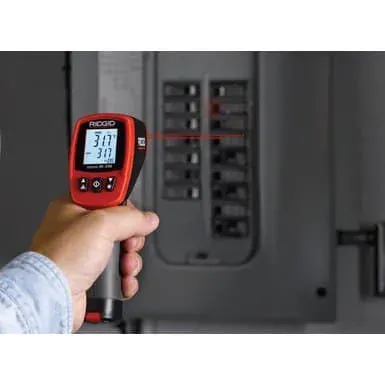

The RIDGID® micro IR-200 Non-Contact Infrared Thermometer provides simple, quick and accurate surface temperature readings at the push of a button. Simply squeeze the trigger and point the ultra-sharp dual class II lasers at the surface being measured. The micro IR-200 provides an immediate temperature measurement on a clear, easy-to-read backlit LCD display. In addition to numerous other uses, this rugged and compact instrument enables professional tradesman to diagnose heating and ventilation problems, perform preventative monitoring of electrical motors and systems, troubleshoot steam traps and quickly check fuses or circuit breakers for overheating – all without contact.
Features:
UltraSharp Dual Class II Lasers easily identify the surface area being measured.
30 To 1 Distance To Spot Ratio allows you to take more accurate measurements from a farther distance.
Adjustable Emissivity to accurately measure the temperature of virtually any surface.
Audible and Visual High and Low Alarms quickly alert you to temperatures outside of the ranges that you set.
Bright Backlit Display which can be toggled on in poorly lit areas.
Tripod Mount Capable for repeatable, precise temperature measurements.
Specifications:
Temperature Range
-58° to 2192°F (-50° to 1200°C)
Measurement Accuracy
58°F to 68°F (-50°C to 20°C) ±4.5°F (2.5°C); 68°F to 2192°F (20°C to 1200°C); ±1.8°F (1.0°C)
Distance To Spot Ratio
30 to 1
Response Time
<150ms
Emissivity
Adjustable, 0.10 - 1.00
Temperature Display
Current Temperature, MAX Temperature
Measurement Units
Fahrenheit, Celsius
Power Source
Battery (1 x “9V”) Included
