TRAMEX Concrete Moisture Encounter - CME 5
Usually in stock
TRAMEX CONCRETE ENCOUNTER CME5 – NON-DESTRUCTIVE
Request a quote
Pricing for this machine depends on configuration and delivery. Add it to your quote list and we will come back to you.
Specifications
| Size | 6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm) |
|---|---|
| Weight | 12.1oz (344g) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Analogue |
| Depth of penetration | approx. ¾" (20 mm) |
Product description
SPECIFICATIONS
Size: 6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
Weight: 12.1oz (344g)
Construction: ABS Body
Power: 2 x AALR6 ALKALINE (included)
Display: Analogue
Depth of penetration: approx. ¾" (20 mm)
Measuring range:
Moisture Content for Concrete 0 to 6%
Comparative for Gypsum floor screed 0 to 10
Reference scale 0 to 100
PRODUCT DESIGN

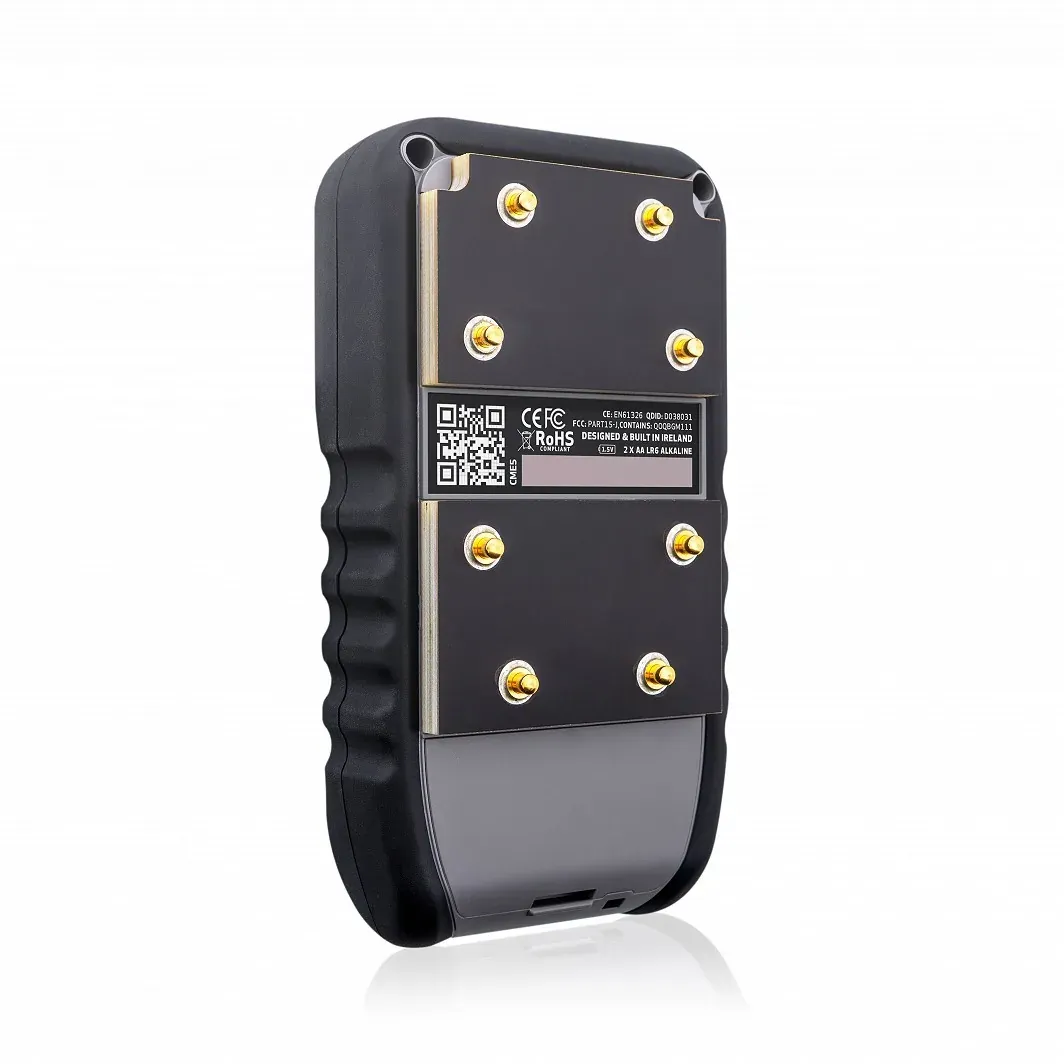

The Concrete Moisture Encounter detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material. The Concrete Moisture Encounter determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear analog dial.
Operating procedure:

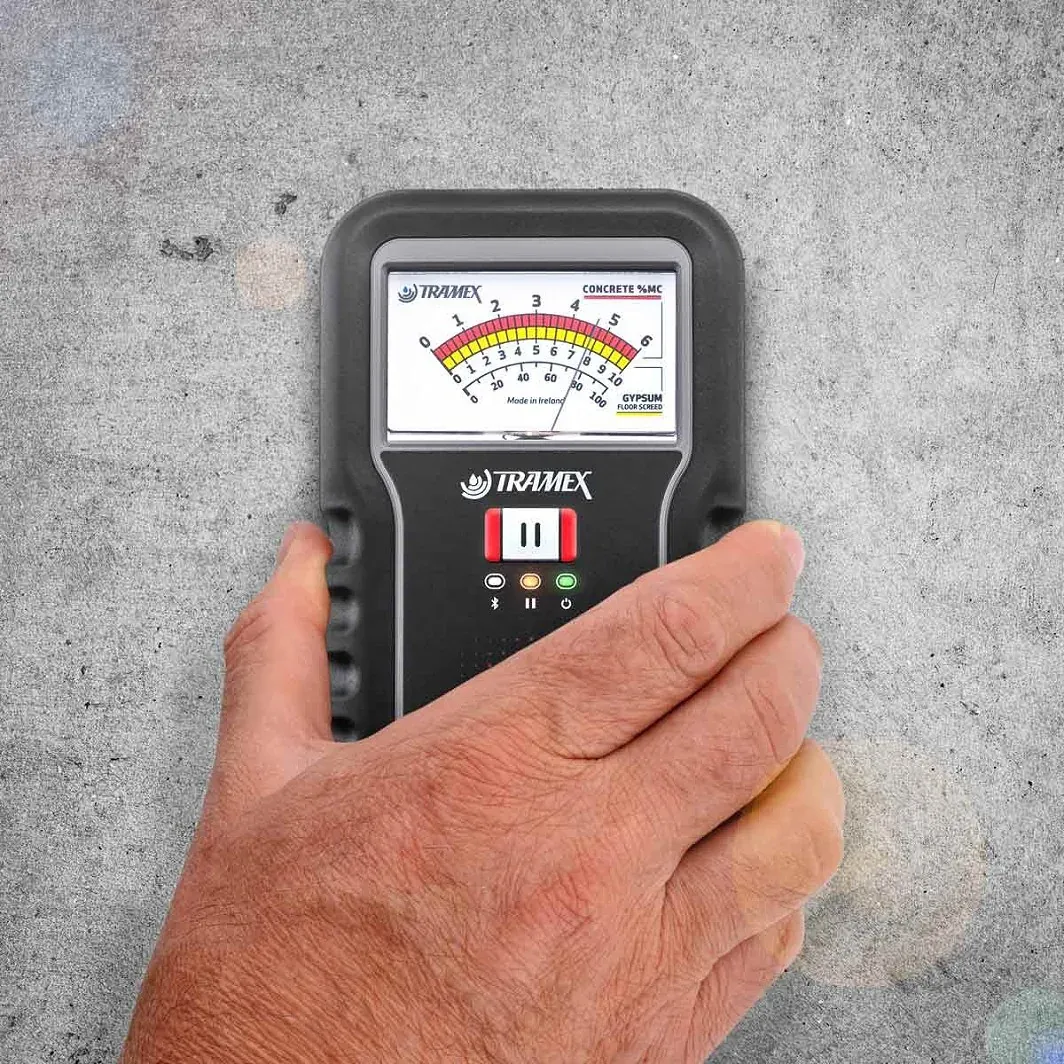

To carry out tests simply brush any dust from a smooth area of concrete and also from the electrodes, switch on the Concrete Moisture Encounter and place it firmly onto the surface, fully compressing the spring-loaded, signal-enhancing contacts on the base. Read the moisture content from the clear analogue dial. The Concrete Moisture Encounter is calibrated to give percentage moisture content readings on clean, bare dust free concrete floor slabs, with a depth of penetration of approx. ¾" (20 mm). Readings taken on concrete slabs through paint, coatings, adhesives or other materials on the surface should be regarded as qualitative or comparative and not quantitative.
